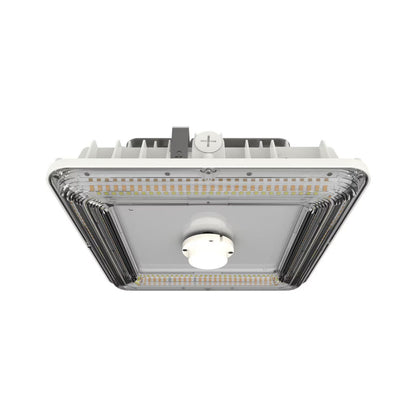

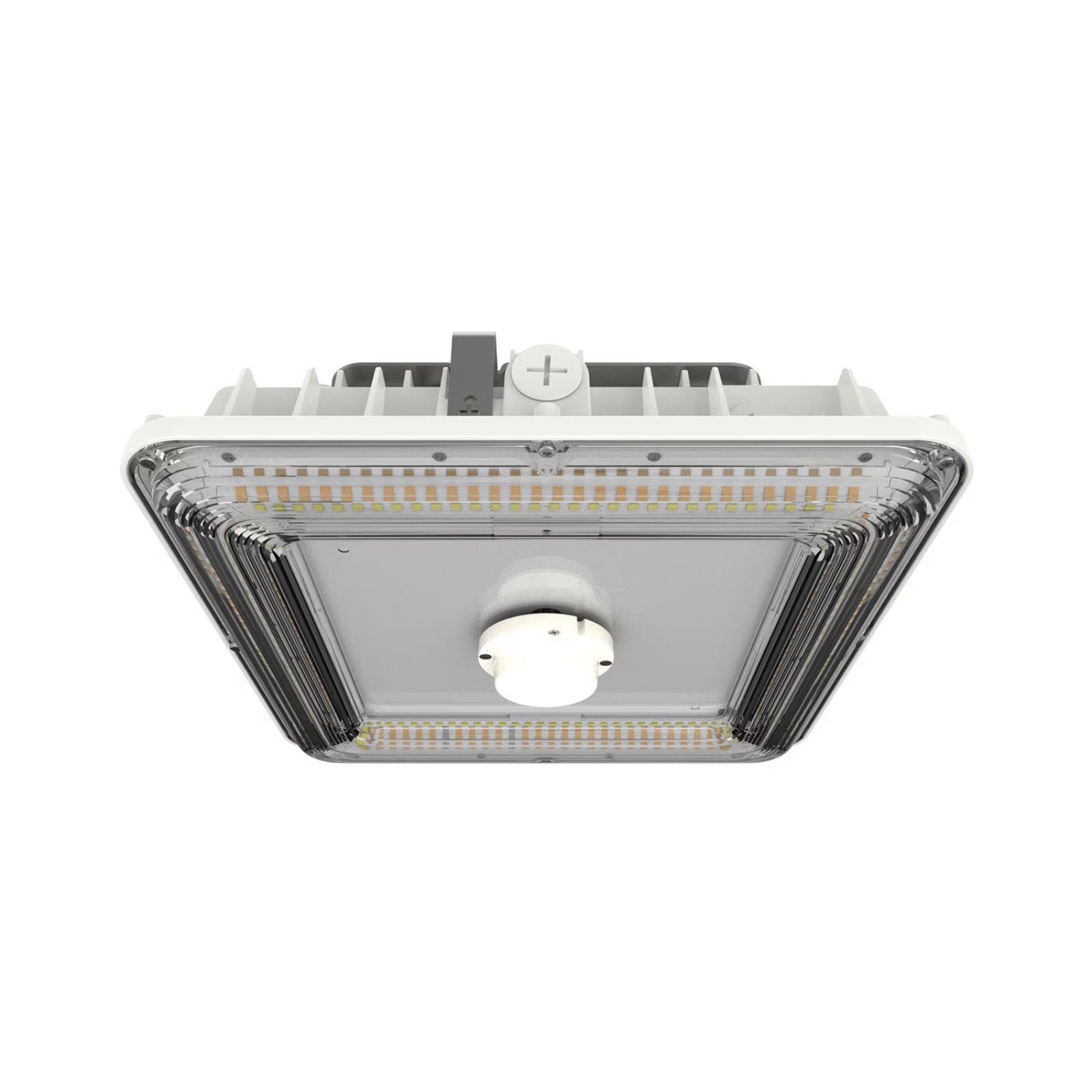

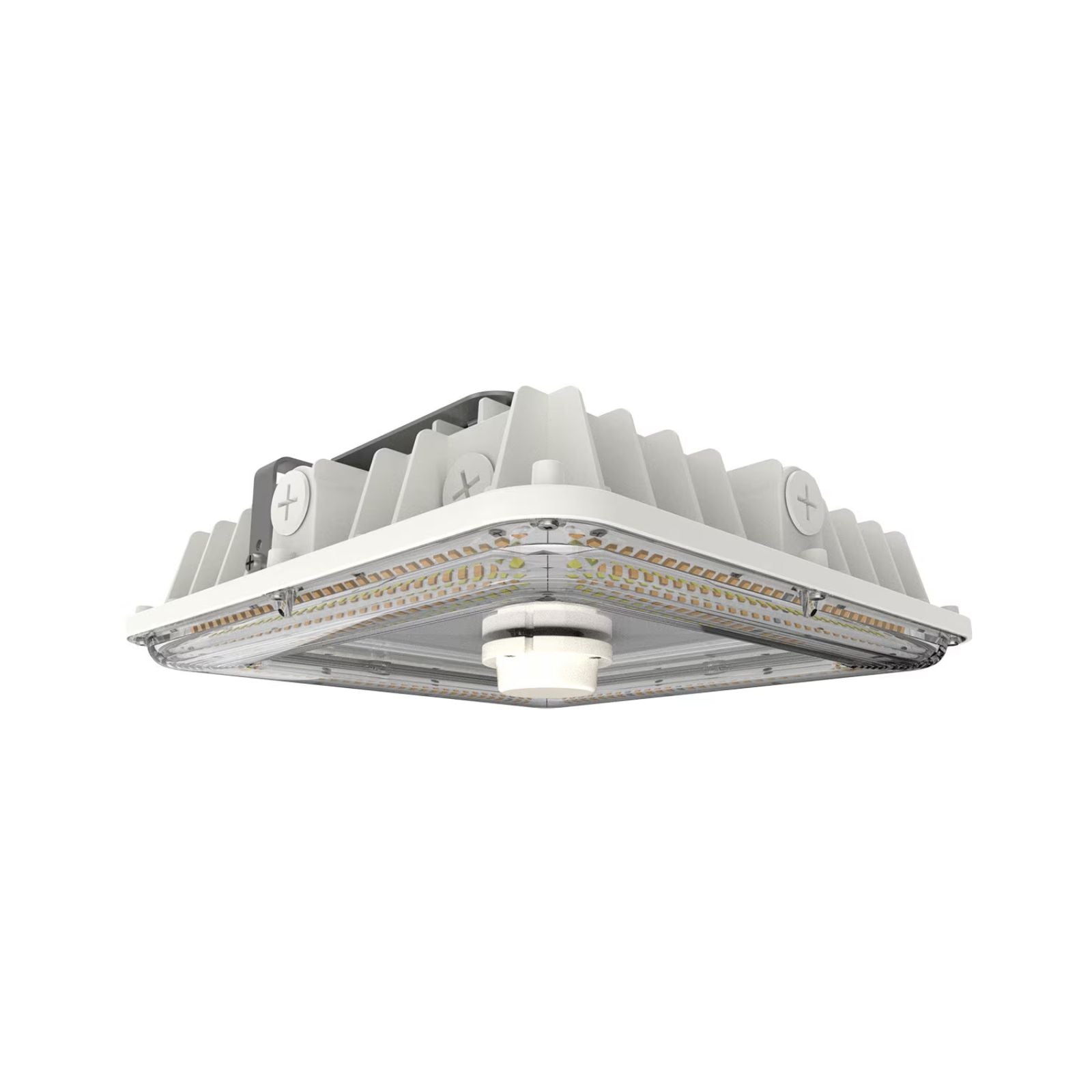

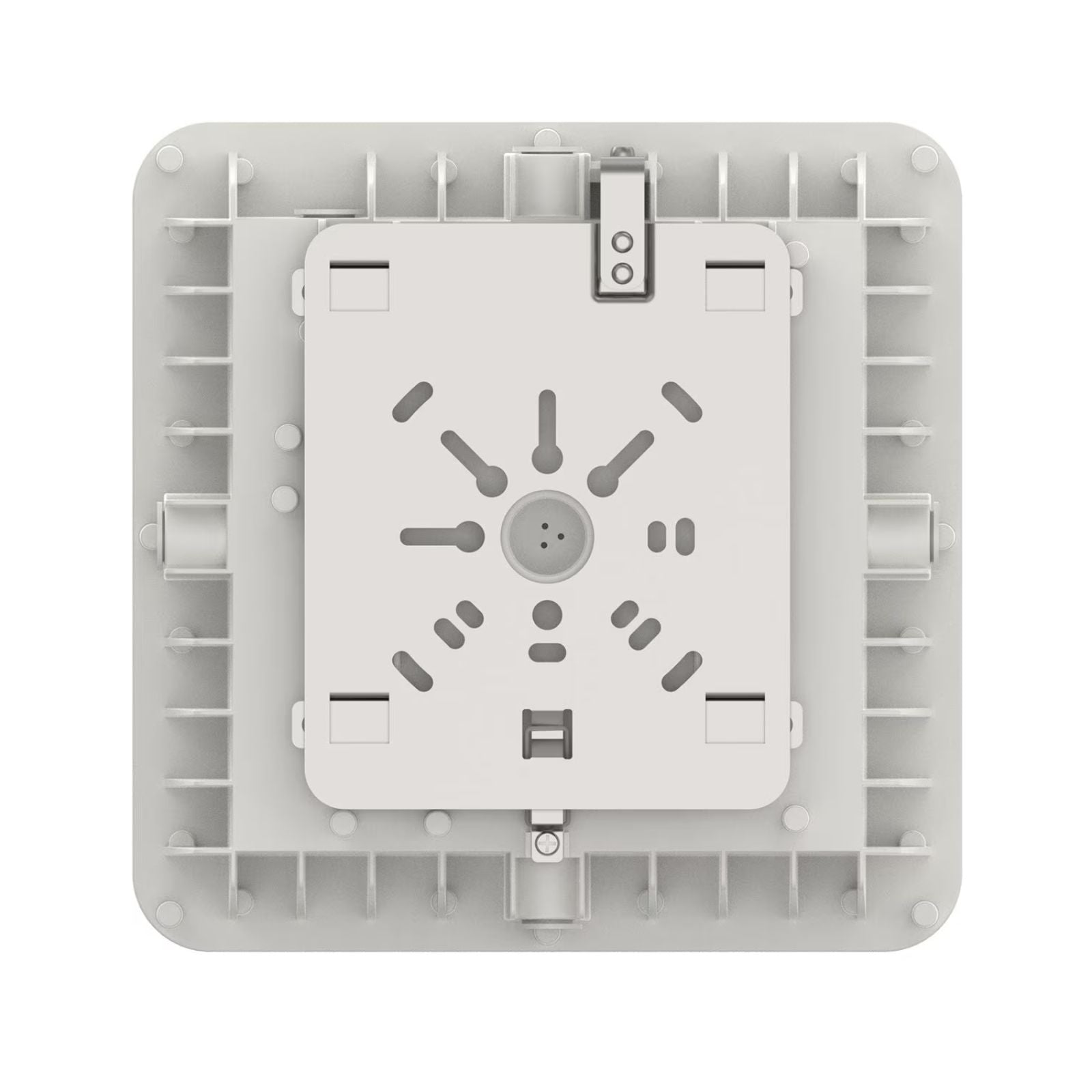

10 inch 75W Square LED Multi Watt Multi CCT Canopy Light
10 inch 75W Square LED Multi Watt Multi CCT Canopy Light
LEDone
SKU:
Specifications:
|
Dimensions: 10.43 in x 10.43 in x 2.76 in |
Lens: Frosted |
|
Wattage: 40/50/60/75W (Selectable) |
Product Efficacy (Min): 138 lm/W |
|
Finish: Powder-coated finish |
IP Rating: IP65 |
|
Input Voltage Range: 120 - 277V |
Average life: 50,000 hrs |
|
Input Frequency: 50/60 Hz |
Operating Temperature: -20°C to +50°C (-4°F to 122°F) |
|
Power Factor: 0.90 |
Bug Rating: B3-U3-G3 |
|
THD: <15% |
Rating: Wet Location |
|
Total Lumens (Min): 5,520/6,900/8,280/10,350 lumens |
Certifications: DLC Listed, UL, TAA Compliant |
|
Dimming: 0 - 10V |
Product CCT: 3000K/4000K/5000K (Selectable) |
|
Product CRI: 70 |
LED Package: Seoul 2835 LED chips |
|
Housing Material: Die-cast Aluminum with Polyester Coating |
Product Beam Angle: 147° |
Description
Overview
This 10” Square Canopy Light is a multi-wattage, multi-CCT surface-mounted fixture designed for parking structures, warehouses, supermarkets, and logistic centers. With selectable wattages (40W to 75W) and color temperatures (3000K, 4000K, 5000K), it offers great flexibility and high efficiency at 138 lm/W. This IP65-rated canopy light features an integrated 0–10V dimming, optional microwave sensor, and emergency battery compatibility for a wide range of commercial lighting applications.
Features
• Samsung 2835 LED Chips
• Die-cast aluminum housing
• Easy installation and maintenance
• Corrosion and rust proof
