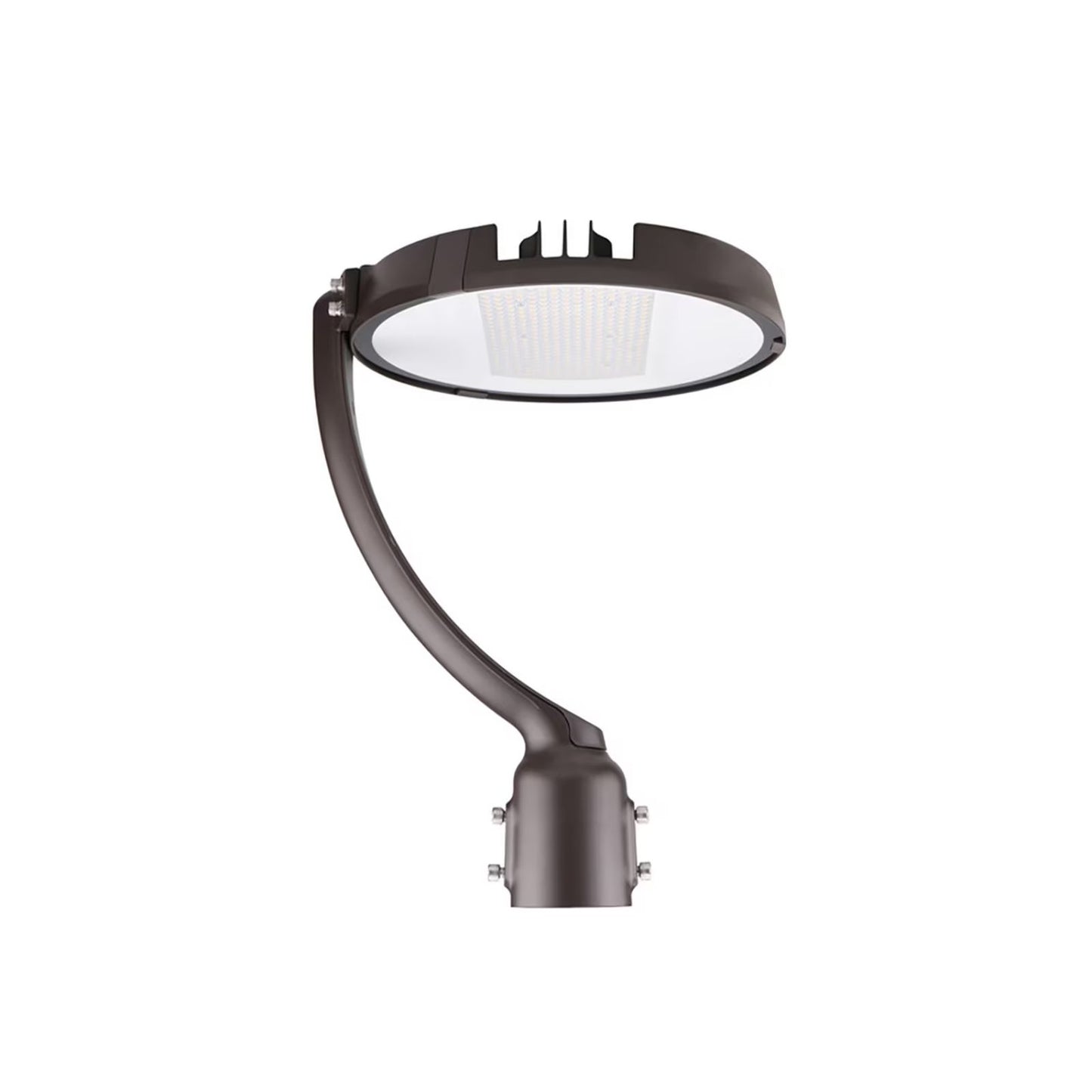

100W Multi Watt Multi CCT LED Post Top Light Built-in Motion Sensor
100W Multi Watt Multi CCT LED Post Top Light Built-in Motion Sensor
LEDone
SKU:
Specifications:
|
Dimensions: 13.9” x 12.8” x 18.31” |
Surge Protection: 4kV (L/N-PE), 6kV (L-N) |
|
Wattage: 25W/50W/75W/100W (Selectable) |
Lens : Type 5 |
|
Housing Material: Die Cast Aluminum |
Bug Rating: B3-U0-G2 |
|
Input Voltage Range: 120 - 277V |
Average life: 50000 hrs |
|
Input Frequency: 50/60 Hz |
Operating Temperature: -40°C to 50°C (-40°F to 122°F) |
|
Power Factor: 0.9 |
Dimming: 0 - 10V |
|
THD: 15% |
Rating: Wet Location, IP65 |
|
Total Lumens (Min): 2,921.5 lm (25W) / 5,843 lm (50W) / 8,764.5 lm (75W) / 11,686 lm (100W) |
Product Efficacy (Min): 116.86 lm/W |
|
Driver Type (CC/CV): CC |
Product CCT: 3000K/4000K/5000K (Selectable) |
|
Product CRI: 83 |
Certifications: DLC Listed (S-B1C9MD), ETL Listed |
|
Lens Material: Polycarbonate |
Product Beam Angle: 100° x 140° |
|
Diffuser Material: Polycarbonate |
Mounting Option: Pole mounting – Suitable for 3” poles |
Description
Overview
This LED Multi Wattage Multi CCT Post Top Light is a versatile, energy-efficient outdoor lighting solution designed for area lighting, parking decks, plazas, auto dealerships, shopping malls, sporting complexes, and municipal lots. Offering four wattage options (25W, 50W, 75W, and 100W) and three selectable CCT options (3000K, 4000K, 5000K), this post-top fixture allows full customization for brightness and color temperature.
Constructed with durable die-cast aluminum housing and a high-quality polycarbonate lens, this fixture provides excellent light uniformity with minimal glare. The IP65 rating ensures superior weather resistance, making it ideal for outdoor applications in various climates. The built-in motion sensor with photocell enhances energy savings and efficiency, ensuring automatic operation based on ambient light and motion detection.
With 0-10V dimming capability and DLC certification, this fixture offers maximum energy savings and rebate eligibility, making it an excellent replacement for traditional 150W – 600W HID fixtures.
Features
• Multi-Wattage Selectable – Choose from 25W, 50W, 75W, or 100W to match brightness requirements.
• Multi-CCT Selectable – Adjust color temperature between 3000K, 4000K, and 5000K for optimal ambiance.
• High Lumen Output – Provides up to 11,686 lumens, ensuring bright and uniform illumination.
• Wide Beam Angle (100° x 140°) – Enhances even light distribution with minimal glare.
• Energy Efficient – High 116.86 lm/W efficacy reduces electricity consumption and operational costs.
• 0-10V Dimmable – Compatible with dimmers for customized brightness control.
• Built-in Motion Sensor with Photocell – Enables automatic on/off functionality for enhanced energy savings.
• Weatherproof & Durable – IP65-rated aluminum housing for outdoor applications in extreme conditions.
• Surge Protection – Features 4kV L/N-PE and 6kV L-N protection for electrical safety.
• Long-Lasting Performance – 50,000-hour lifespan ensures low maintenance and reliability.
• Pole Mounting – Designed for 3” poles, making it easy to install and secure.
• DLC & ETL Certified – Complies with industry standards for performance and safety.
• Ideal for Various Applications – Perfect for parking lots, plazas, shopping centers, and recreational areas.
