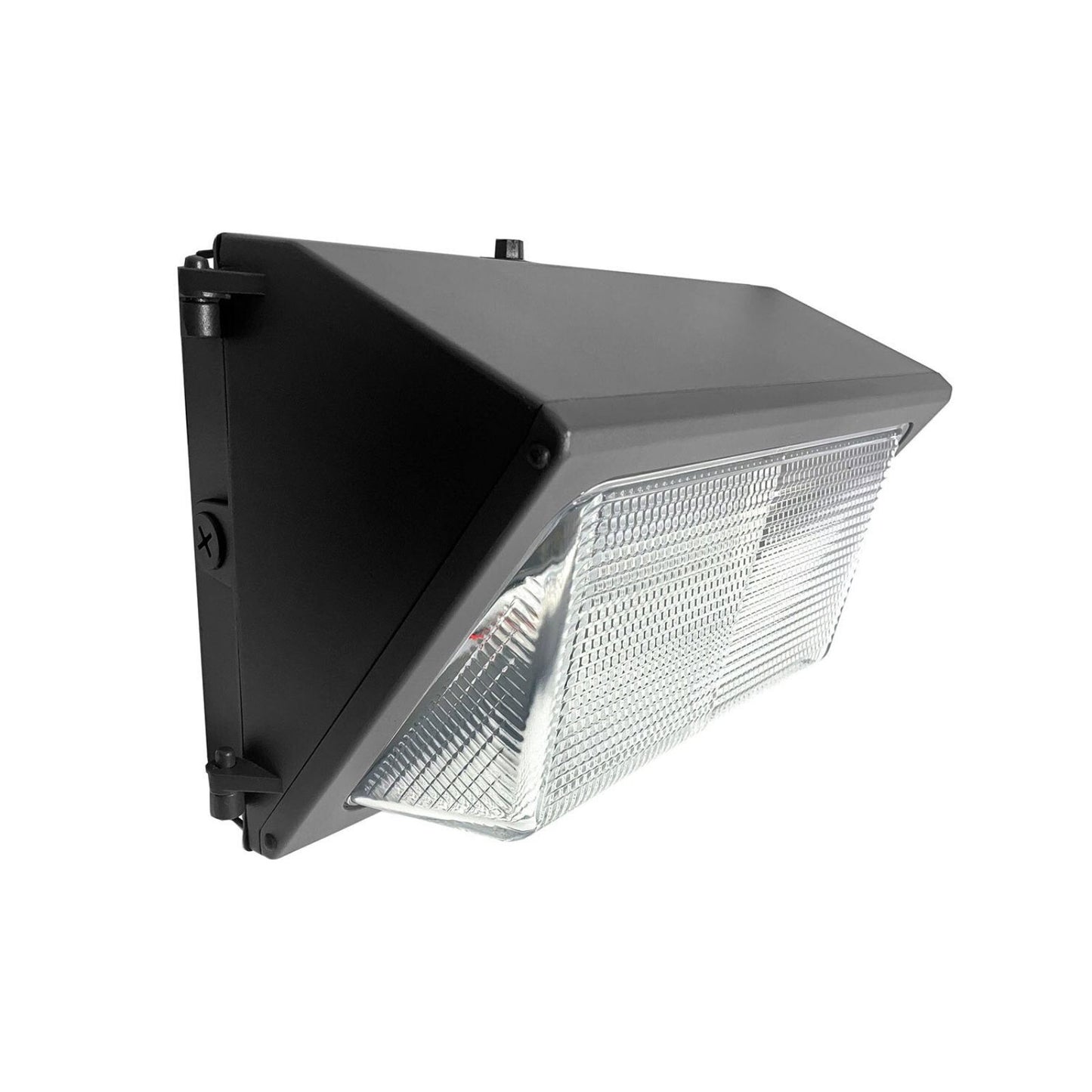

120W Multi Watt Multi CCT LED Wall Pack with Photocell
120W Multi Watt Multi CCT LED Wall Pack with Photocell
LEDone
SKU:
Specifications:
|
Dimensions: 363 mm x 234 mm x 191 mm |
Accessories: Photocell Included |
|
Wattage: 60/80/100/120W (Selectable) |
Bug Rating: B3-U4-G4 |
|
Finish: Bronze Powder Coated Finish |
IP Rating: IP65 |
|
Input Voltage Range: 120 - 277V |
Average life: 50,000 hrs |
|
Input Frequency: 50/60 Hz |
Operating Temperature: -40°C to +40°C (-40°F to 104°F) |
|
Power Factor: 0.966 |
Diffuser Transmission: High |
|
THD: 8.4% |
Rating: Wet Location |
|
Total Lumens (Min): 8,205 lm (60W) / 10,940 lm (80W) / 13,675 lm (100W) / 16,753 lm (120W) |
Product Efficacy (Min): 136.75 lm/W |
|
Dimming: 0 - 10V |
Product CCT: 3000/4000/5000K (Selectable) |
|
Product CRI: 71.6 |
LED Package: Lumileds LUXEON 3030 2D LED chips |
|
Lens Material: Tempered Glass |
Product Beam Angle: 120° |
|
Diffuser Material: Polycarbonate |
Housing Material: Heavy Diecast Aluminum Alloy Housing |
Description
Overview
This LED Multi-Wattage Multi-CCT Wall Pack Light Series is a versatile and energy-efficient outdoor lighting solution designed for warehouses, stadiums, factories, parking lots, shopping malls, supermarkets, and logistic centers. These LED wall packs offer customizable wattage and color temperatures, allowing users to adjust brightness and color to fit various applications.
With a robust die-cast aluminum housing and a tempered glass lens, these fixtures ensure durability and high performance in outdoor environments. The IP65 rating provides weather resistance, making them ideal for commercial and industrial applications. The built-in photocell allows for automatic dusk-to-dawn operation, further enhancing energy savings.
The quick mount back plate design ensures easy installation and maintenance, while the 0-10V dimming capability allows users to optimize lighting output. DLC and ETL certification guarantee that these fixtures meet high industry standards for efficiency and reliability.
Features
• Multi-Wattage Selectable – Choose from multiple wattage options (25W-120W) for optimal brightness.
• Multi-CCT Selectable – Adjustable color temperature (3000K, 4000K, 5000K) to match different lighting needs.
• High Lumen Output – Delivers up to 16,753 lumens, ensuring bright and uniform illumination.
• Energy Efficient – High 140 lm/W efficacy, reducing electricity consumption.
• 0-10V Dimmable – Compatible with dimmers for custom brightness control.
• Durable Construction – Heavy-duty die-cast aluminum housing and tempered glass lens.
• Weatherproof & Corrosion Resistant – IP65-rated for outdoor and industrial applications.
• Quick Mount Installation – Backplate design ensures hassle-free setup.
• Built-in Photocell Sensor – Provides automatic dusk-to-dawn functionality for added efficiency.
• Long-Lasting Performance – 50,000-hour lifespan ensures minimal maintenance.
• DLC & ETL Certified – Meets industry safety and energy efficiency standards.
• Ideal for Various Applications – Perfect for parking lots, warehouses, shopping centers, and factories.
