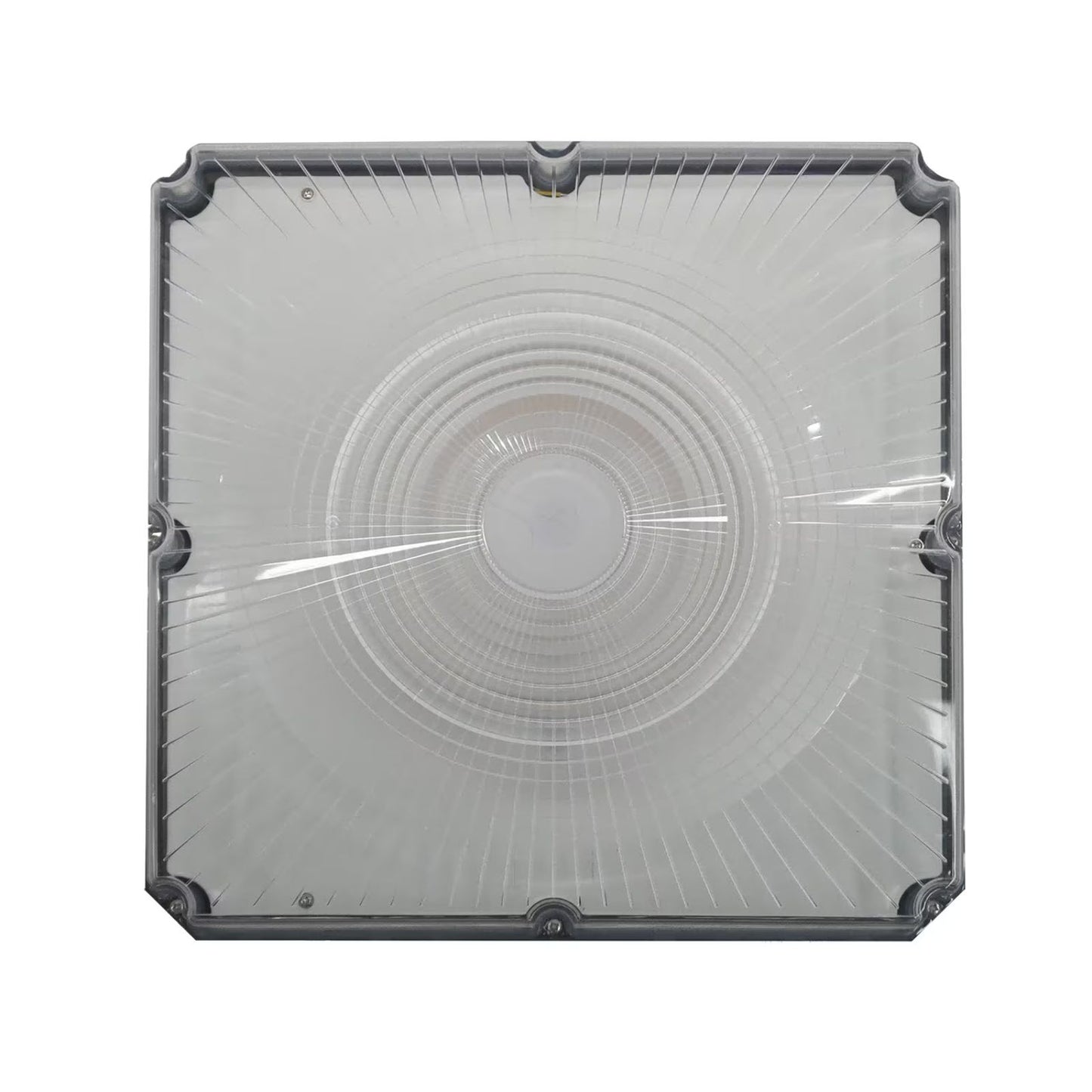

13 inch 100W Square LED Multi Watt Multi CCT Canopy Light
13 inch 100W Square LED Multi Watt Multi CCT Canopy Light
LEDone
SKU:
Specifications:
|
Dimensions: 13.6 in x 13.6 in x 4.09 in |
Lens: Frosted |
|
Wattage: 25/50/75/100W (Selectable) |
Product Efficacy (Min): 121.54 lm/W |
|
Finish: Bronze |
IP Rating: IP65 |
|
Input Voltage Range: 120 - 277V |
Average life: 50,000 hrs |
|
Input Frequency: 50/60 Hz |
Operating Temperature: -40°C to +50°C (-40°F to 113°F) |
|
Power Factor: 0.93 |
Bug Rating: B3-U3-G3 |
|
THD: 10.3% |
Rating: Wet Location |
|
Total Lumens (Min): 3,038.5 lm (25W) / 6,077 lm (50W) / 9,115.5 lm (75W) / 12,154 lm (100W) |
Certifications: DLC Premium Listed, UL Certified |
|
Dimming: 1 - 10V |
Product CCT: 3000K/4000K/5000K (Selectable) |
|
Product CRI: 85 |
LED Package: Seoul 2835 LED chips |
|
Lens Material: Polycarbonate |
Product Beam Angle: 162° |
|
Diffuser Material: Polycarbonate |
Housing Material: Heavy Diecast Aluminum |
Description
Overview
This 13” Square Canopy Light is a multi-wattage and multi-CCT selectable LED fixture, offering versatile and energy-efficient lighting solutions for a wide range of commercial and industrial applications. Designed for warehouses, stadiums, factories, parking lots, shopping malls, and auto dealerships, this heavy-duty die-cast aluminum fixture ensures durability and long-lasting performance.
With four wattage settings (25W, 50W, 75W, and 100W) and three selectable CCT options (3000K, 4000K, and 5000K), users can customize brightness and color temperature based on specific project needs. The 1-10V dimming capability allows for seamless brightness control, making it an ideal choice for high-performance lighting in demanding environments.
Featuring an IP65 rating, the polycarbonate lens and heavy-duty aluminum housing provide exceptional durability against weather conditions, while the wide 162° beam angle ensures uniform light distribution for improved visibility and safety.
Features
• Multi-Wattage Selectable – Choose from 25W, 50W, 75W, or 100W for customized brightness and energy efficiency.
• Multi-CCT Selectable – Adjustable color temperature (3000K, 4000K, 5000K) for adaptable lighting environments.
• High Lumen Output – Delivers up to 12,154 lumens for bright and uniform illumination.
• Energy Efficient – Offers 121.54 lm/W efficacy, reducing energy consumption and operational costs.
• 1-10V Dimmable – Compatible with dimmers for smooth brightness adjustments.
• Heavy-Duty Construction – Built with die-cast aluminum housing and polycarbonate lens for rugged durability.
• Wide Beam Angle (162°) – Ensures even light distribution with reduced glare.
• IP65 Weatherproof Rating – Designed for outdoor and industrial use in harsh environments.
• Long-Lasting Performance – 50,000-hour lifespan ensures low maintenance and high reliability.
• Versatile Mounting Options – Supports wall mounting with an easy-install backplate.
• DLC & ETL Listed – Meets industry standards for performance and energy efficiency.
• Ideal for Various Applications – Suitable for warehouses, factories, stadiums, parking lots, shopping malls, and logistic centers.
