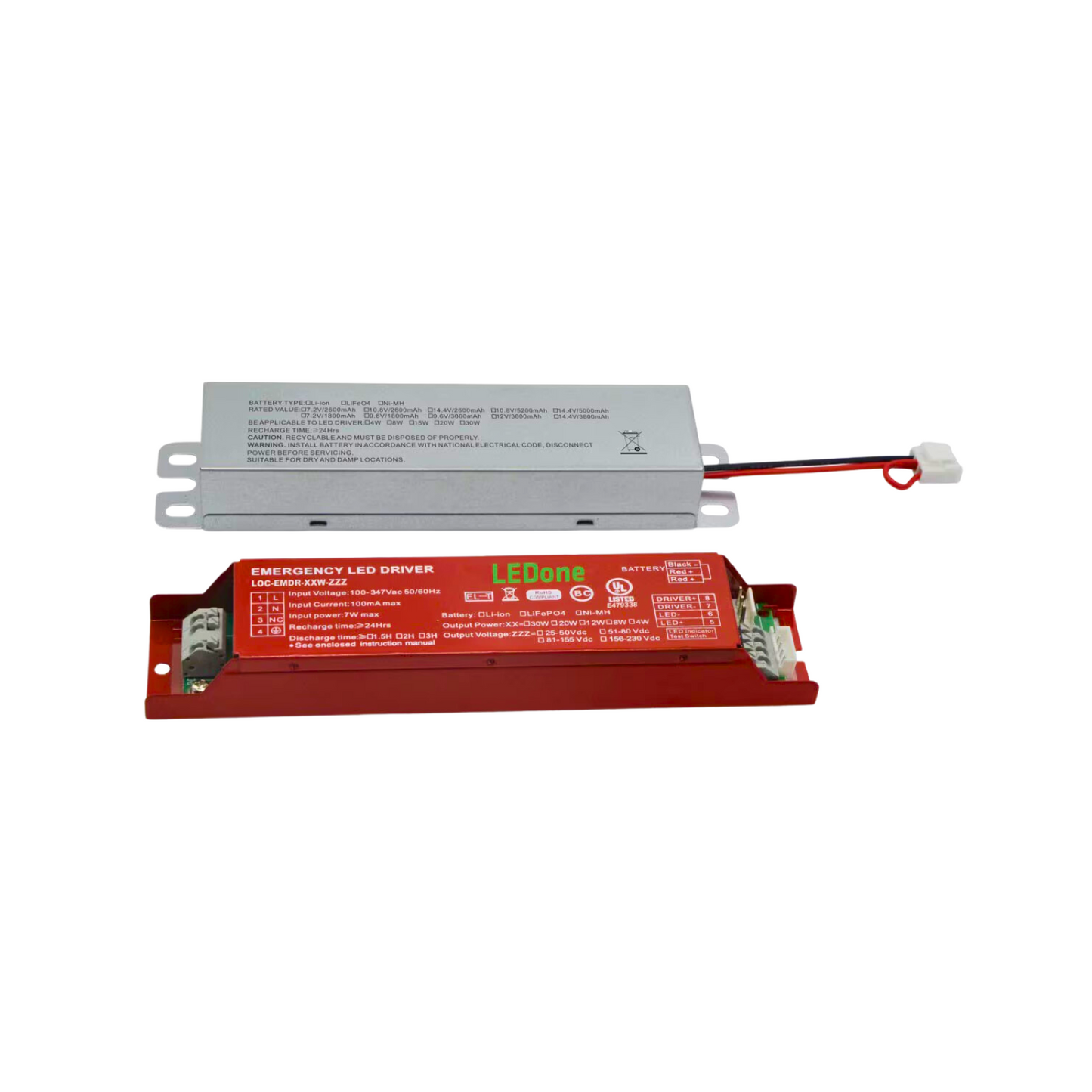

15W Emergency Battery Backup
15W Emergency Battery Backup
Specifications:
Emergency Power: 15W max |
Input Voltage: 100-277Vac, 50/60Hz |
Input Current: 100mA max. |
Input Power Rating: 7W max |
Output Voltage: 25V-50Vdc |
Recharge Time: 24 Hours |
Discharge Time: >1.5 Hours |
Battery Type: Li-ion |
Ambient Temperature: 0°-50°C (32°F-122°F) |
Surge Protection: Line-neutral 3KV |
Certifications: UL924, Test to CSA C22.2 NO. 141 |
Warranty: 5yr |
Description
Overview
This Emergency Driver ensures reliable emergency lighting with a maximum output power of 15W. It features self-testing capabilities, a Li-ion battery with over-temperature protection, and surge protection. Compliant with UL924 and CSA C22.2 NO. 141 standards, it is suitable for various installations and operates efficiently in temperatures from 0° to 50°C (32°F to 122°F). With a 5-year limited warranty, it offers peace of mind and dependable performance.
Features
• Listed to UL924
• Tested to CSA C22.2 NO. 141 for field or factory installation
• High output voltage with low energy consumption, CEC compliant
• Constant output power
• Self-testing functionality for reliable performance
• Li-ion battery with over-temperature protection
• Surge protection: Line-neutral 3KV
• Ambient temperature range: 0°-50°C (32°F-122°F)
• 5-year limited warranty
