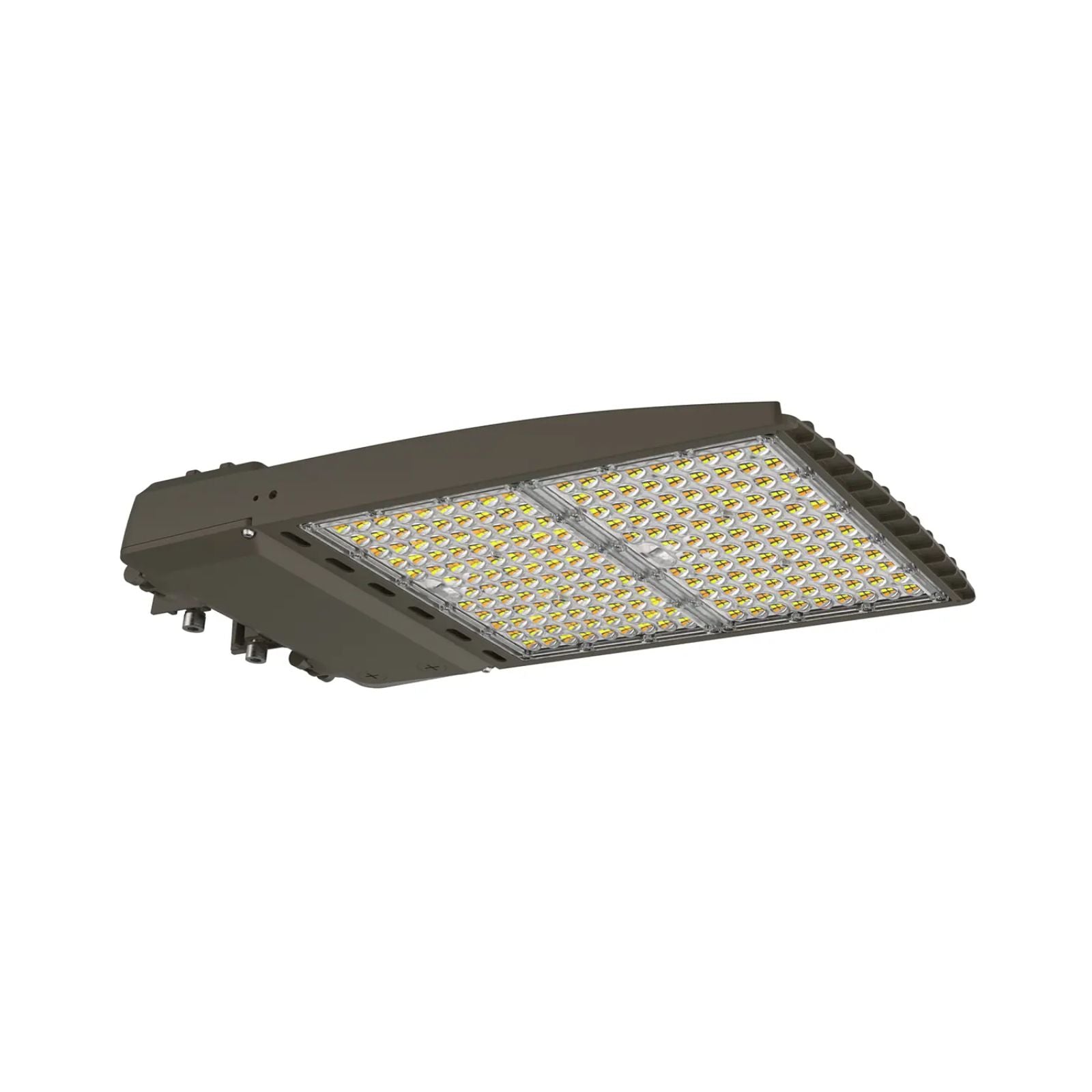

160-320W Multi Watt Multi CCT Area Light
160-320W Multi Watt Multi CCT Area Light
LEDone
SKU:
Specifications:
|
Dimensions: 24.41 in x 14.57 in x 4.72 |
LED Package: Lumileds 3030 LED chips |
|
Wattage: 160/200/240/320W (Selectable) |
Surge Projection (CM): 10 KV |
|
Dimming: 0-10V |
Default Lens Type: Type III |
|
Input Voltage Range: 120 - 277V or 347 - 480V |
Average life: 50000 hrs |
|
Bug Rating: B5-U3-G4 |
Operating Temperature: -40°C to +40°C (-40°F to 104°F) |
|
Power Factor: 0.9 |
Product CRI: 70 |
|
THD: 15% |
IP Rating: IP65 |
|
Total Lumens (Min): 23,680 - 47,360LM |
Product Efficacy (Min): 148.45 lm/W |
|
Product Beam Angle: 120° |
Product CCT: 3000K/4000K/5000K (Selectable) |
|
Housing Material: Die-Cast Aluminum |
|
Description
Overview
This Area Light offers a versatile and energy-efficient lighting solution for various outdoor applications. With selectable wattages of 160W, 200W, 240W, and 320W, and color temperatures of 3000K, 4000K, and 5000K, this fixture allows for customization to meet specific lighting requirements. Its compatibility with Type III optics ensures optimal light distribution. Designed for durability, it features an IP65-rated housing, making it suitable for wet locations, and operates within a voltage range of 120–277V and 347-480V. Ideal for parking lots, campuses, and commercial outdoor spaces, that combines performance with flexibility.
Features
• Lumileds 3030 LED Chips.
• Full cut off.
• Bronze die-cast aluminum housing treated by anodic oxidation.
• Easy installation and maintenance.
• Corrosion and rust proof.
