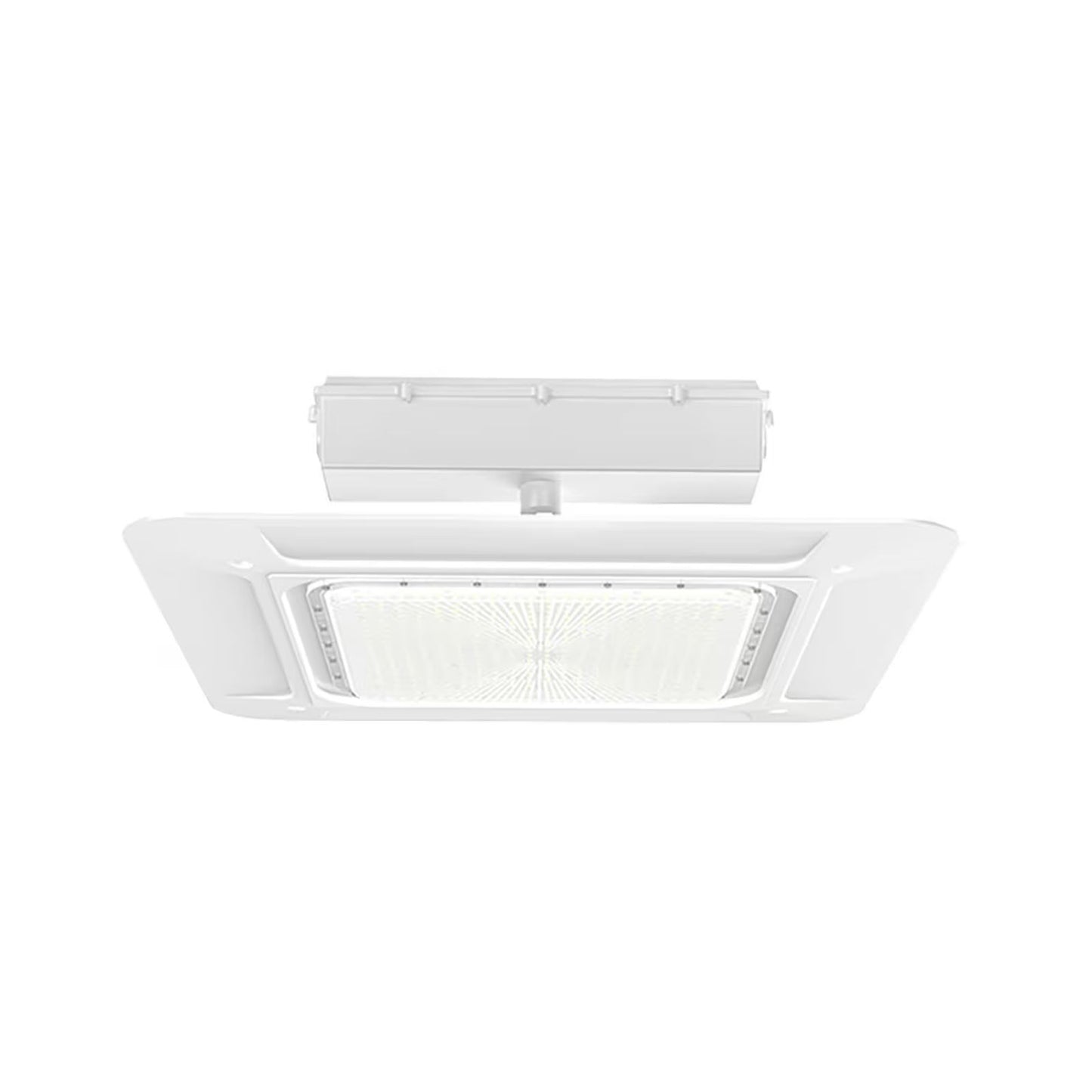

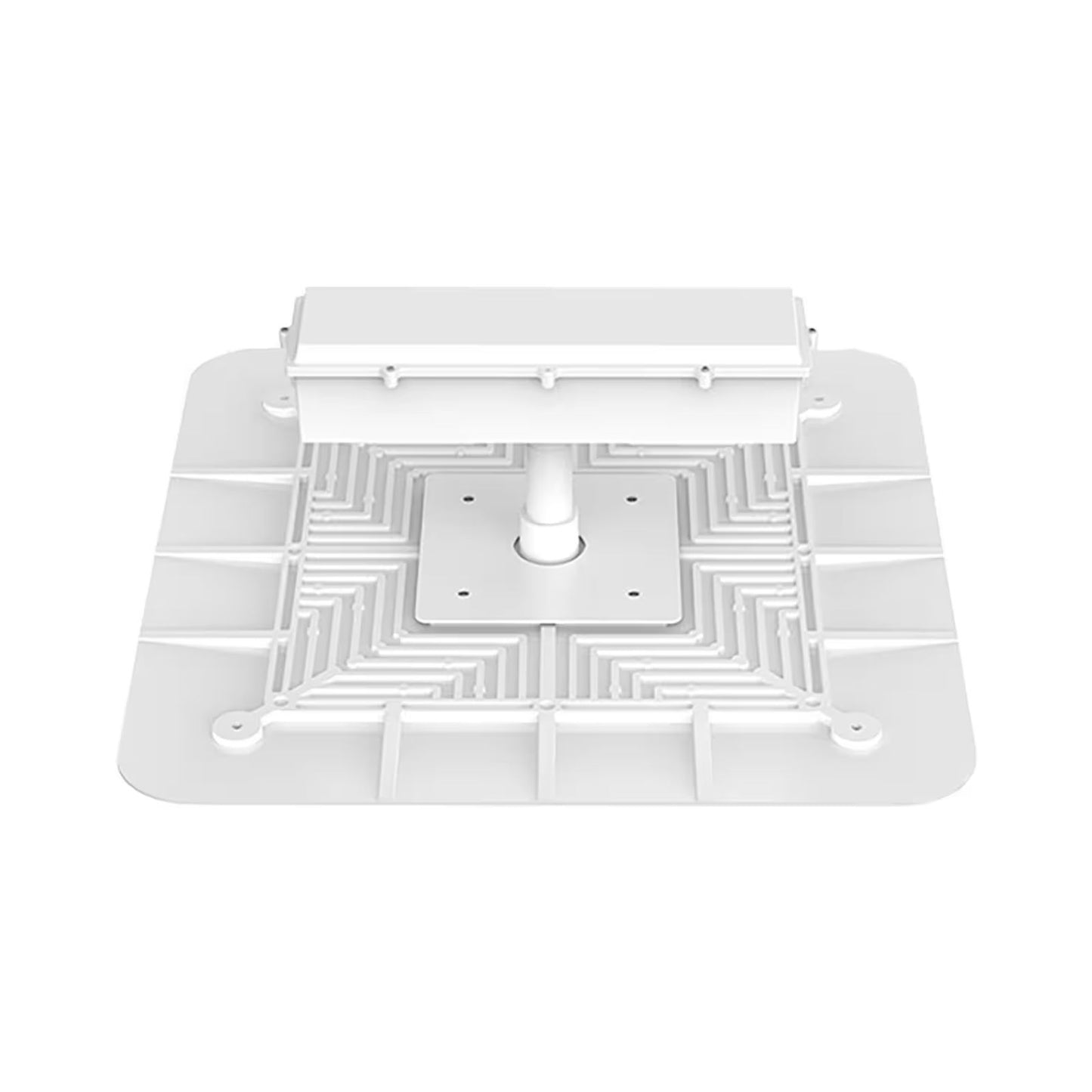

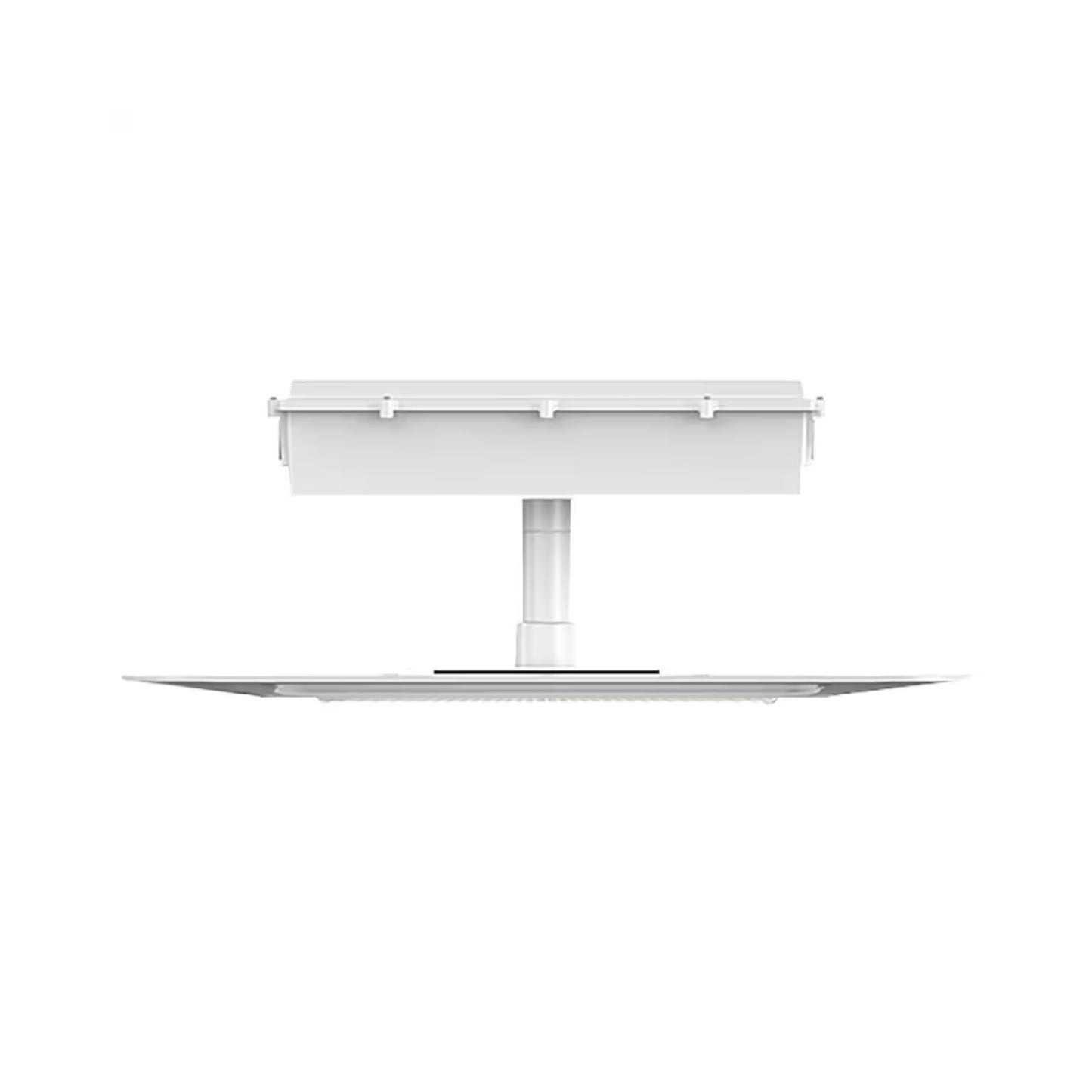

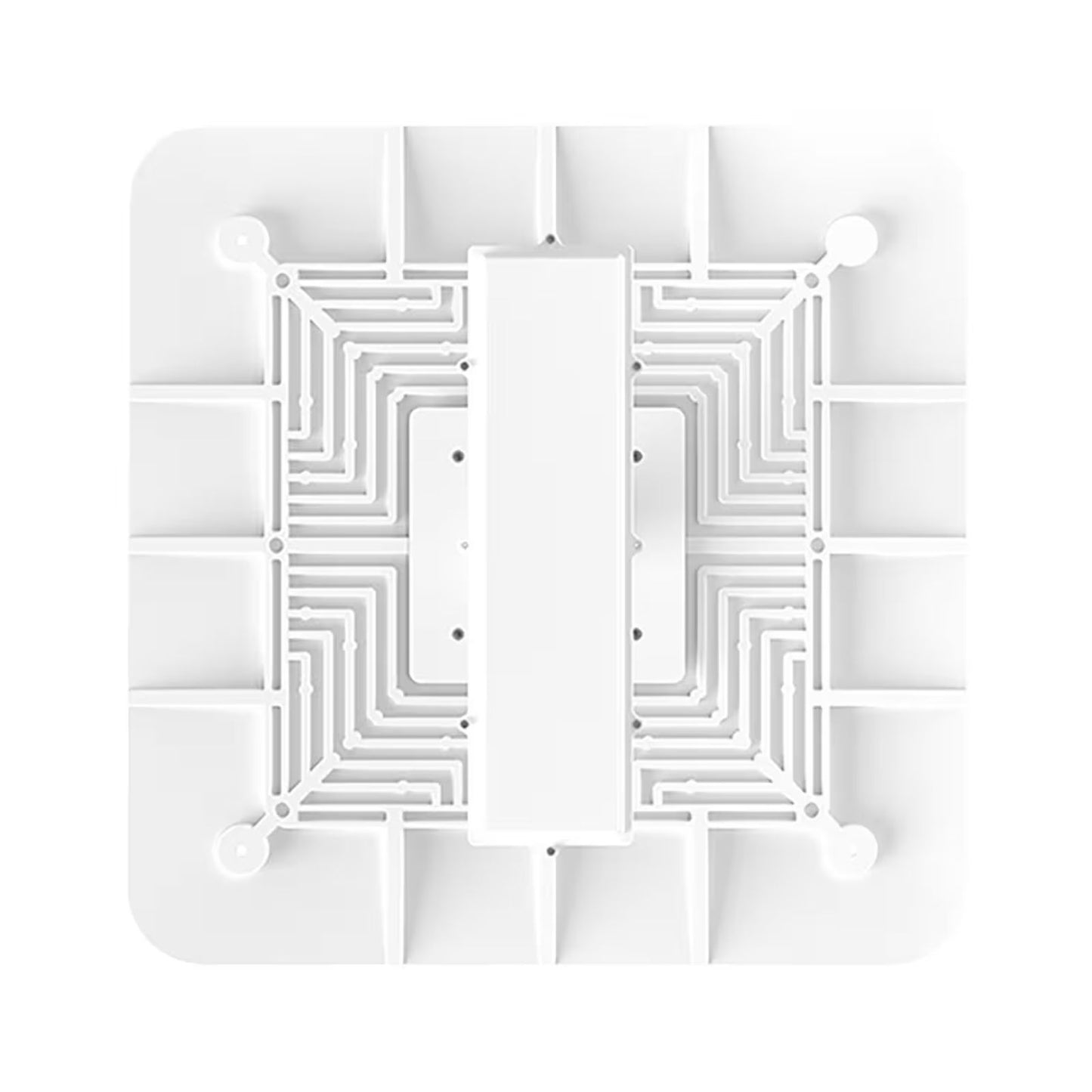

180W Square LED Multi Watt Multi CCT Gas Station Canopy Light

180W Square LED Multi Watt Multi CCT Gas Station Canopy Light

LEDone

Specifications:

Dimensions: 21.65 in x 21.65 in x 8.5 in

Lens: Polycarbonate

Wattage: 75/100/150/180W (Selectable)

Product Efficacy (Min): 145.2 lm/W

Finish:  Powder-coated finish

IP Rating: IP65

Input Voltage Range: 120 - 277V

Average life: 50,000 hrs

Input Frequency: 50/60 Hz

Operating Temperature: -40°C to +45°C (-4°F to 113°F)

Power Factor: 0.96

Bug Rating: B4-U3-G3

THD: 6.5%

Rating: Wet Location

Total Lumens (Min): 10,890/14,520/21,780/ 26,136 lumens

Certifications: DLC Listed, UL, TAA Compliant

Dimming: 0 - 10V

Product CCT: 3000K/4000K/5000K (Selectable)

Product CRI: 84

LED Package: Seoul 2835 LED chips

Housing Material: Die-cast Aluminum with Polyester Coating

Product Beam Angle: 120°
View full details

Description

Overview

This multi-wattage LED canopy light ideal for gas stations, garages, warehouses, and covered walkways. With selectable wattages (75W / 100W / 150W / 180W) and fixed 5000K CCT, it delivers up to 26,136 lumens with excellent efficiency. Engineered for easy installation and maintenance, this IP65-rated fixture features a robust die-cast aluminum housing, 0–10V dimming, and multiple sensor compatibility options.

Features

• SMD 2835 LED chips
•Heavy die-cast Aluminum housing with white polyester powder-coated finish
• Corrosion and rust proof
• Easy installation
• Polycarbonate lens
• Surge protection: L-N: 6KV, L/N-P: 6KV
