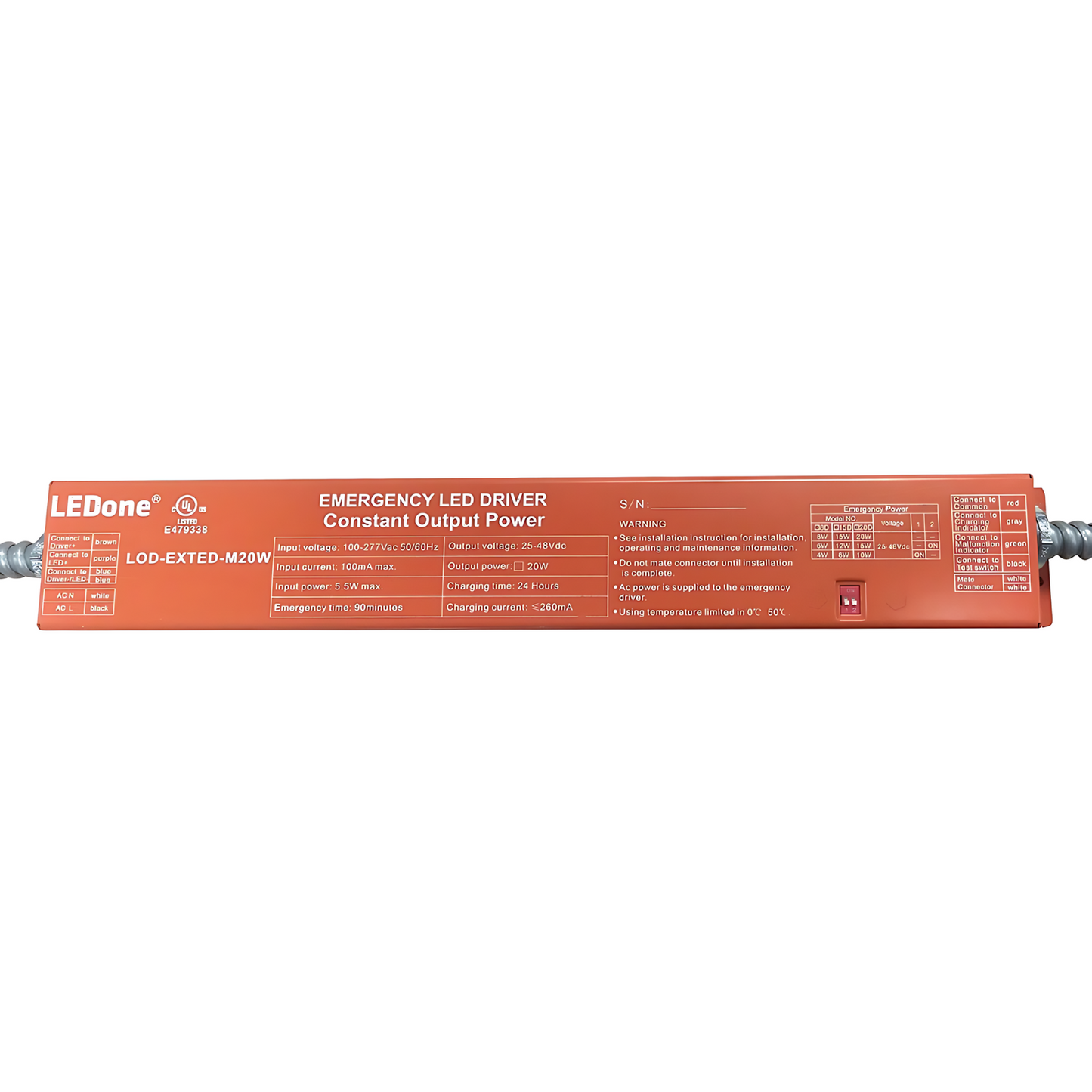

20W Emergency Battery Backup

20W Emergency Battery Backup

LEDone

SKU:

Specifications:

Emergency Power: 10/15/20W (Adjustable)

Input Voltage: 120-277Vac, 50/60Hz

Input Current: 100mA max.

Input Power Rating:  5.5W max

Output Voltage: 25V-48Vdc

Recharge Time: 24 Hours

Emergency Operation Duration: Minimum of 90 minutes

Battery Type: Ni-MH

Ambient Temperature: 0°-50°C (32°F-122°F)

Battery Charging Current: 250mA

Certifications: UL924, Test to CSA C22.2 NO. 141

Warranty: 5yr

View full details

Description

Overview

This Emergency Driver Series is a reliable solution for maintaining illumination during power outages, featuring adjustable wattage settings (10W, 15W, 20W) and constant output power. Designed with a Ni-MH battery that offers multiple protection features, it ensures safety and performance under varying conditions. This emergency driver supports a wide input voltage range and is compliant with various output requirements, making it versatile for different applications. With a compact design and robust features, including a 5-year limited warranty, the LOD-EXTED provides peace of mind with reliable emergency lighting for up to 90 minutes.

Features

• Wattage Adjustable: 10W / 15W / 20W
• Constant output power for reliable performance
• LVLE compliant output
• Ni-MH battery with over voltage, low voltage, over temperature, and short circuit protection
• Operates within an ambient temperature range of 0°-50°C (32°F-122°F)
• Input voltage: 120-277Vac, 50/60Hz
• Input current: 100mA max.
• Input power rating: 5.5W max.
• Output voltage: 25-48Vdc
• Output power: 20W max.
• Recharge time: 24 hours
• Easy system testing with the test button
• Provides emergency operation for a minimum of 90 minutes
• Covered by a 5-year limited warranty
