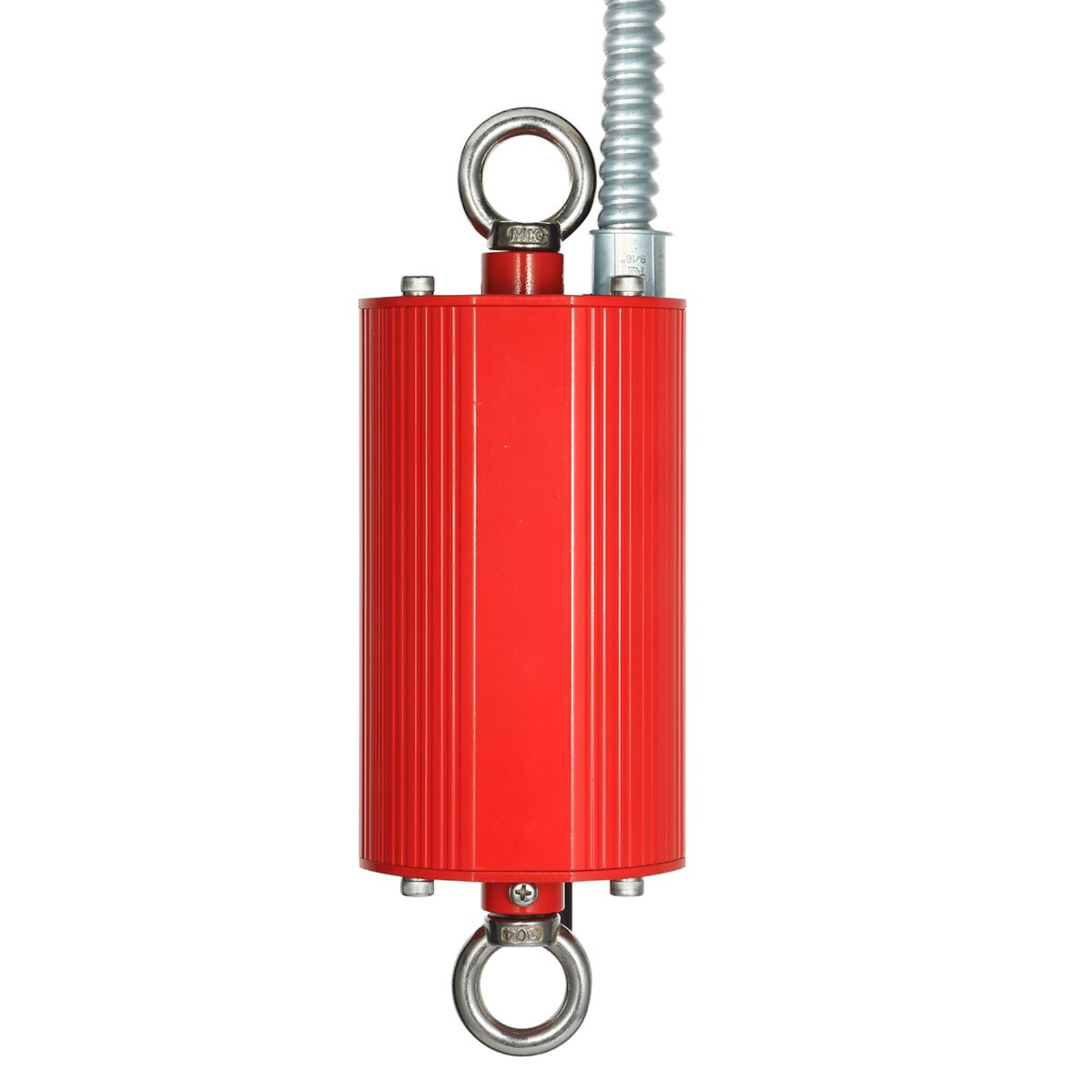

25W Emergency Driver for UFO Highbay
25W Emergency Driver for UFO Highbay
LEDone
SKU:
Specifications:
|
Emergency Power: 25W max |
Input Voltage: 100-347Vac, 50/60Hz |
|
Input Current: 200mA max. |
Input Power Rating: 12W max |
|
Output Voltage: 170Vdc |
Recharge Time: 24 Hours |
|
Discharge Time: >1.5 Hours |
Battery Type: Ni-MH or Li-ion |
|
Operating Temperature: 0°-50°C (32°F-122°F) |
Self-Testing: 30-second discharge test monthly, full discharge test yearly |
|
Certifications: UL924, Test to CSA C22.2 NO. 141 |
Warranty: 5yr |
Description
Overview
This high bay emergency driver designed to ensure uninterrupted lighting in critical situations. This driver is capable of delivering 25W of emergency power with a 170Vdc output voltage, ensuring reliable performance during power outages. Its self-testing feature ensures regular functionality checks, while the 5-year limited warranty offers peace of mind. Ideal for use in LED fixtures with dimmable functions, this driver is both efficient and compliant with industry standards.
Features
• Listed to UL924
• Tested to CSA C22.2 NO. 141 for field or factory installation
• Low energy consumption and CEC Title 20 compliant
• High output voltage with constant output power
• Contains a self-testing control/monitor circuit
• Includes a remote test switch with a 98FT distance capability
• Designed for high bay LED fixtures with dimmable functions
