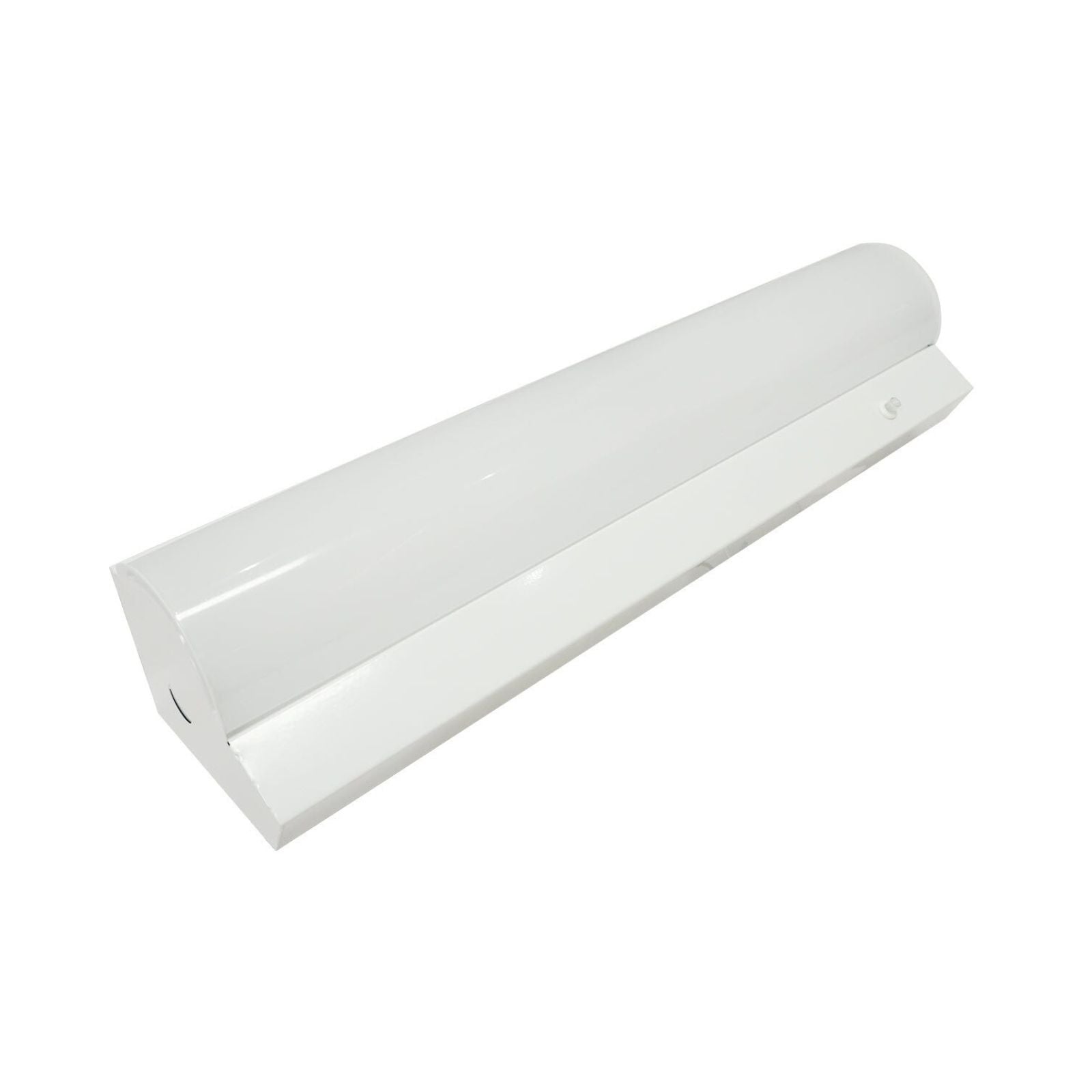

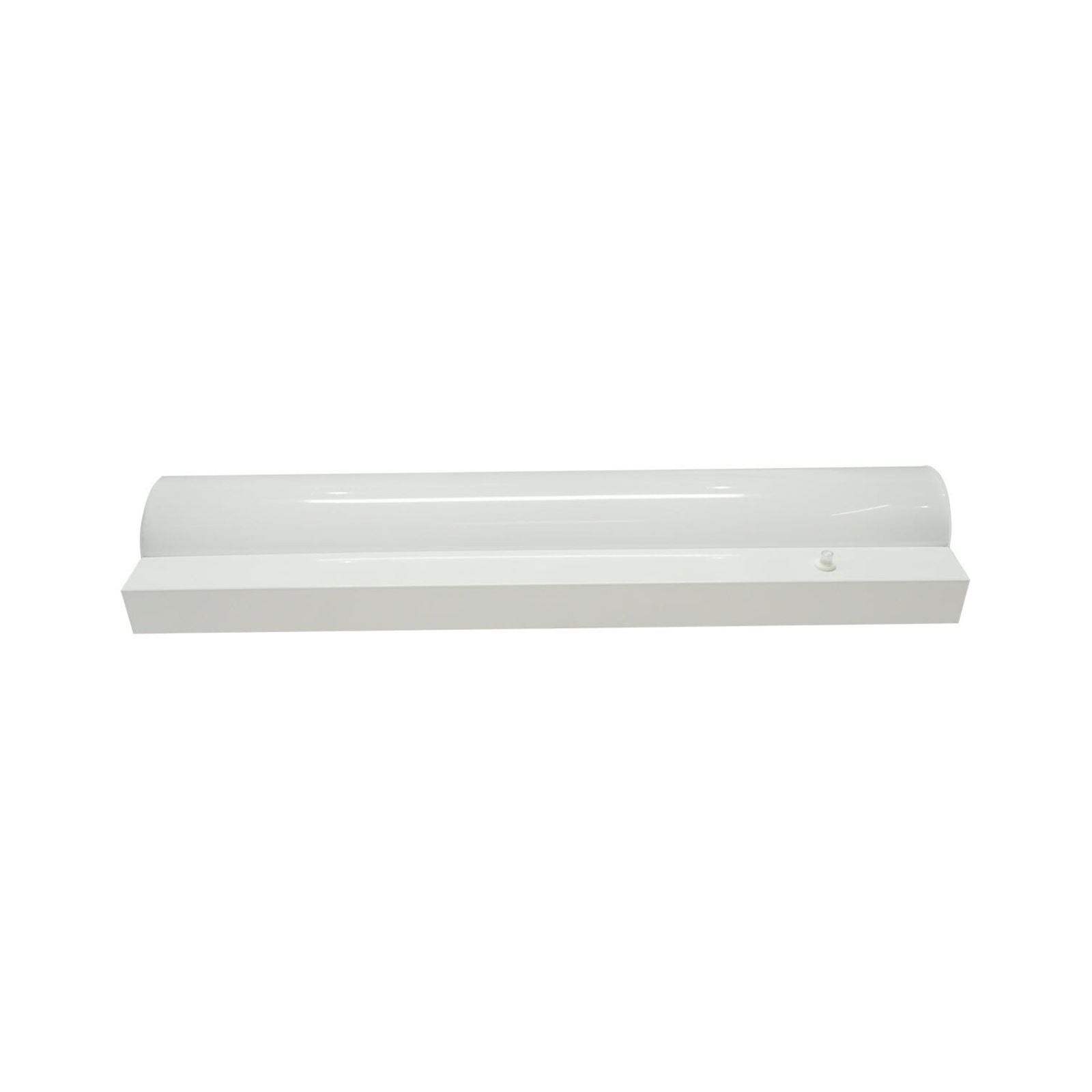

2FT 25W Multi Watt Multi CCT Stairwell Linear Strip Light
2FT 25W Multi Watt Multi CCT Stairwell Linear Strip Light
LEDone
SKU:
Specifications:
|
Size: 2FT |
Driver Efficiency: High |
|
Wattage: 15W/20W/25W (Selectable) |
IP Rating: IP20 |
|
Fixture Color: Matte White |
Product Beam Angle: 120° |
|
Input Voltage Range: 120V - 277V |
Lifetime: 50000 hrs |
|
Input Frequency: 50/60 Hz |
Operating Temperature: -20°C to +50°C (-4°F to 122°F) |
|
Power Factor: 0.994 |
Diffuser Transmission: High |
|
THDA: 11.5% |
Dimensions: 23.98 in x 4.67 in x 5.43 in |
|
Dimming: 0-10V |
Total Lumens (Min): 2083 lm/2779 lm/3473 lm |
|
Minimum Dimming: 0% |
Product Efficacy (Min): 138.9 lm/W |
|
Driver Type (CC/CV): CC |
Product CCT: 3500K/4000K/5000K (Selectable) |
|
Product CRI: 84 |
Lens Material: PC cover lens |
|
Housing: Metal |
Includes: EM Battery Backup, Motion Sensor |
Description
Overview
These stairwell linear strip lights are high-efficiency, multi-watt, and multi-CCT fixtures designed for versatility and performance. Available in 2FT and 4FT lengths, they come with selectable wattages and color temperatures, ensuring adaptability to diverse commercial and industrial applications. Built with a metal housing in matte white finish, smooth PC lens, integrated motion sensor, and 8W emergency battery, these lights are engineered for reliability and safety. Their IP20 rating, 0–10V dimming, and long 50,000-hour lifespan make them ideal for demanding environments.
Features
• Multi-Wattage Selectable: Adjust output (2FT: 15W–25W; 4FT: 30W–50W).
• Multi-CCT Options: Choose between 3500K, 4000K, or 5000K.
• Integrated Emergency Battery: Built-in 8W emergency backup included.
• Motion Sensor: Enhances energy savings and safety.
• High Efficiency: Up to 138 lm/W for maximum performance.
• Robust Build: Metal housing with matte white finish and smooth PC lens.
• Controls: Standard 0–10V dimming for flexible light control.
• Durable: Rated for 50,000 hours of continuous operation.
• Certifications: DLC listed, 5-year limited warranty.
• Mounting: Hanging wire installation for convenience.
• Applications: Warehouses, stadiums, factories, supermarkets, parking lots, logistic centers, and auto dealerships.
