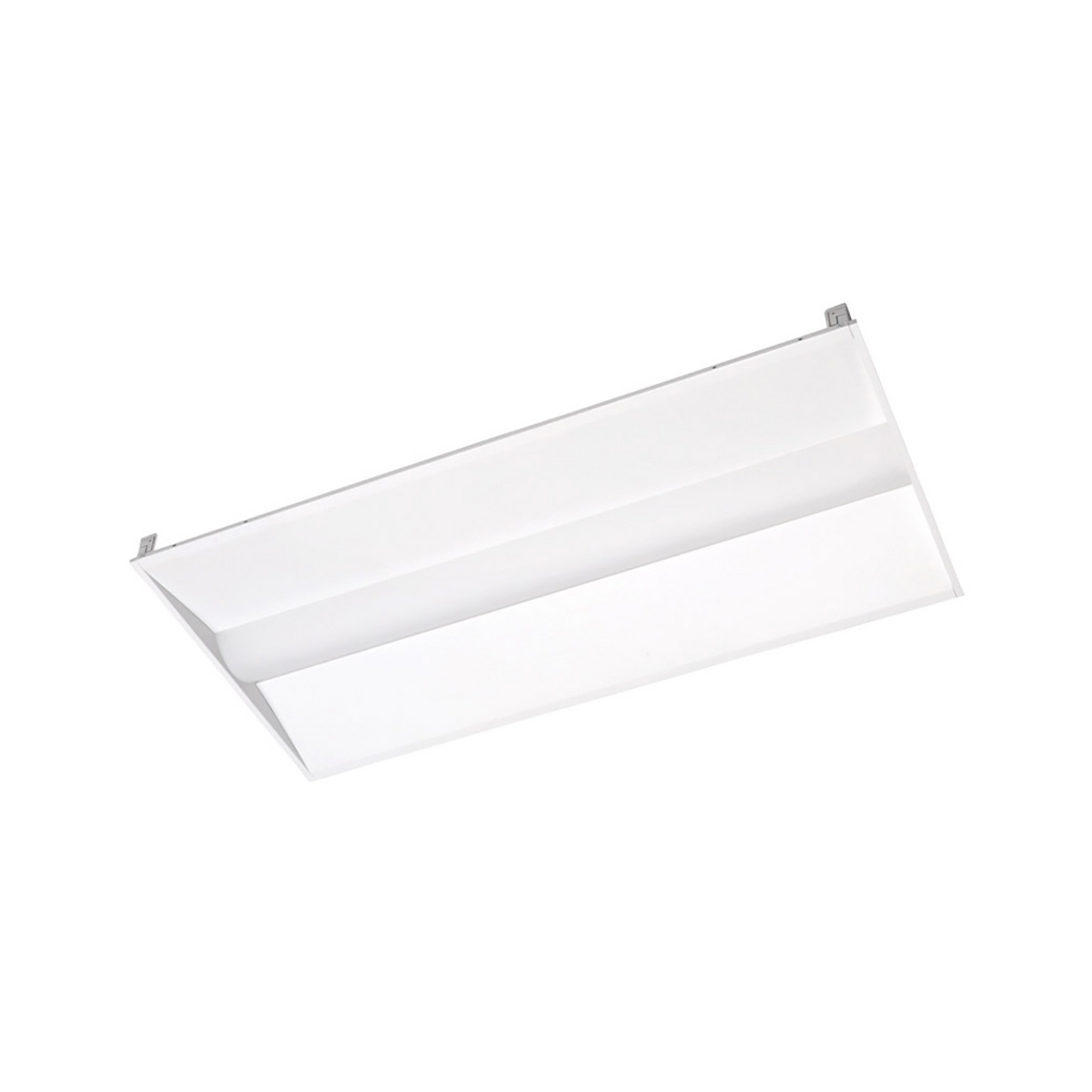

2x4 39W LED Multi Watt Multi CCT Troffer
2x4 39W LED Multi Watt Multi CCT Troffer
LEDone
SKU:
Specifications:
|
Size: 2x4 |
Driver Efficiency: High |
|
Wattage: 24W/29W/32W/39W (Selectable) |
IP Rating: IP20 |
|
Operating Temperature: -20°C to +50°C (-4°F to 122°F) |
Lifetime: 100,000 hours |
|
Input Voltage Range: 120-277V AC |
Total Lumens (Min): 3040.8lm/3674.3lm/4054.4lm/4941.3lm |
|
Input Frequency: 50/60 Hz |
Product Efficacy (Min): 126.7 lm/W |
|
Power Factor: > 0.9 |
Product CCT: 3500K/4000K/5000K (Selectable) |
|
THDA: ≤20% |
LED Package: Samsung 2835 LED chips |
|
Dimming: 0-10V |
Product Beam Angle: 110° |
|
Minimum Dimming: 0% |
Diffuser Transmission: High |
|
Driver Type (CC/CV): Constant Current |
Lens Material: PMMA |
|
Product CRI: 80 |
Diffuser Material: Polycarbonate |
Description
Overview
The LED Multi Watt Multi CCT Troffer Family Series provides versatile and efficient lighting solutions for various applications including warehouses, schools, factories, offices, supermarkets, logistic centers, and exhibition halls. Available in multiple sizes (1x4, 2x2, and 2x4) and selectable wattage and CCT options, these panels ensure optimal lighting for any environment. Designed for durability with a steel and aluminum frame, these troffers have an IP20 rating and a lifespan of 100,000 hours. The Samsung 2835 LED chips and 110° beam angle provide high efficacy and uniform light distribution. The panels are easy to install with surface mount and recessed kit options, and come standard with 0-10V dimming capability, making them suitable for a wide range of lighting applications. Backed by a 5-year limited warranty, these troffers are a reliable and high-performing choice for modern lighting needs.
Features
• Glare-Free Lighting: Provides comfortable illumination
• Optical System: Samsung 2835 LED chips, 110° beam angle
• Construction: Steel and aluminum frame with a matte white finish, the entire fixture acts as a heat sink
• Installation: Fits most preexisting troffers with surface mount and recessed kit options
• Dimming: 0-10V dimming standard, suitable for use with LED dimmers
• Warranty: 5-year limited warranty
