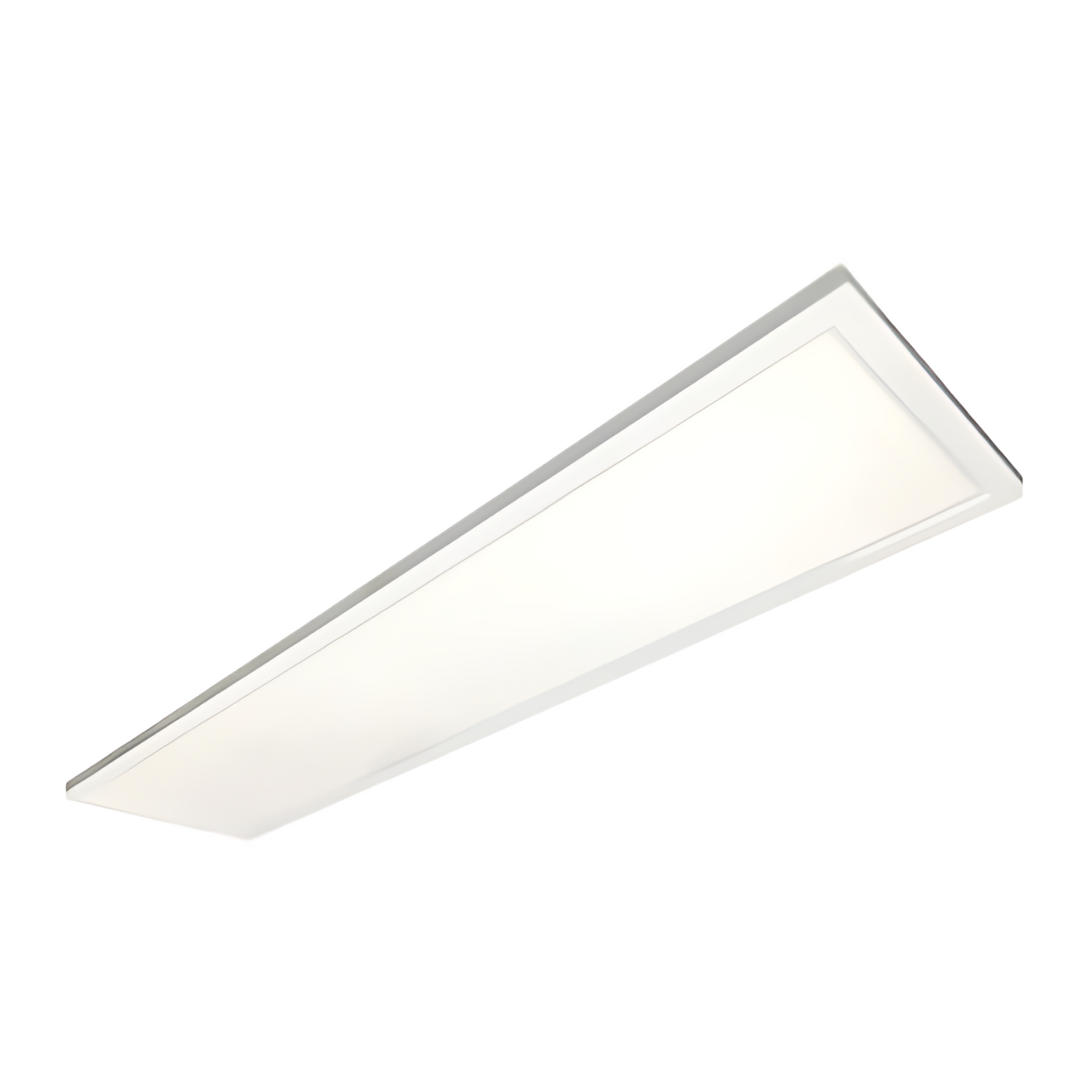

1X4 30W Multi Watt Multi CCT LED Backlit Panel Light
1X4 30W Multi Watt Multi CCT LED Backlit Panel Light
LEDone
SKU:LOC-14AJPL-MW (20/25/30)MCCT(35/40/50)D
Specifications:
|
Size: 1X4 |
Driver Efficiency: High |
|
Wattage: 20W/25W/30W (Selectable) |
IP Rating: IP20 |
|
Operating Temperature: -20°C to +50°C (-4°F to 122°F) |
Lifetime: 50,000 hrs |
|
Input Voltage Range: 120-277 VAC |
Total Lumens (Min): 2500lm/3125lm/3750lm |
|
Input Frequency: 50/60 Hz |
Product Efficacy (Min): 125 lm/W |
|
Power Factor: >0.90 |
Product CCT: 3500K/4000K/5000K (Selectable) |
|
THDA: ≤15% |
LED Package: Samsung 2835 LED chips |
|
Dimming: 0-10 V |
Product Beam Angle: 120° |
|
Minimum Dimming: 0% |
Diffuser Transmission: High |
|
Driver Type (CC/CV): CC |
Lens Material: PMMA |
|
Product CRI: >83.1 |
Diffuser Material: Polycarbonate |
Description
Overview
The LED Multi Watt Multi CCT Back Lit Panel Family offers versatile and efficient lighting solutions for a variety of environments. These panels are available in multiple sizes (2x2, 2x4, and 1x4) and wattage options, allowing for customizable lighting setups to meet specific needs. Each panel features selectable wattages and color temperatures (CCT) of 3500K, 4000K, and 5000K, ensuring optimal lighting for any space. With an IP20 rating, these panels are ideal for dry locations such as warehouses, schools, factories, offices, supermarkets, logistic centers, and exhibition halls.
Built with a durable steel and aluminum frame and a PMMA lens to prevent yellowing, these panels are designed to last with a lifespan of 50,000 hours. The panels provide glare-free and flicker-free lighting, promoting a comfortable and productive environment. The standard 0-10V dimming capability allows for adjustable lighting levels to suit different tasks and preferences.
Easy to install, these panels fit standard T-bar and narrow grid drop ceilings, with additional options for surface mount, recessed kits, or suspension mounts. The use of high-efficiency Samsung 2835 LED chips and a wide 120° beam angle ensures excellent light distribution and energy savings.
Backed by a 5-year limited warranty, the LED Multi Watt Multi CCT Back Lit Panel Family is a reliable and high-performing choice for modern lighting needs.
Features
• Construction: Steel and aluminum frame with PMMA lens to prevent yellowing
• Mounting Options: Fits standard T-bar and narrow grid drop ceilings; surface mount, recessed kit, or suspension mount available
• Suitable Applications: Warehouses, schools, factories, offices, supermarkets, logistic centers, exhibition halls
• Optical System: Samsung 2835 LED chips, 120° beam angle
• Warranty: 5-year limited warranty
