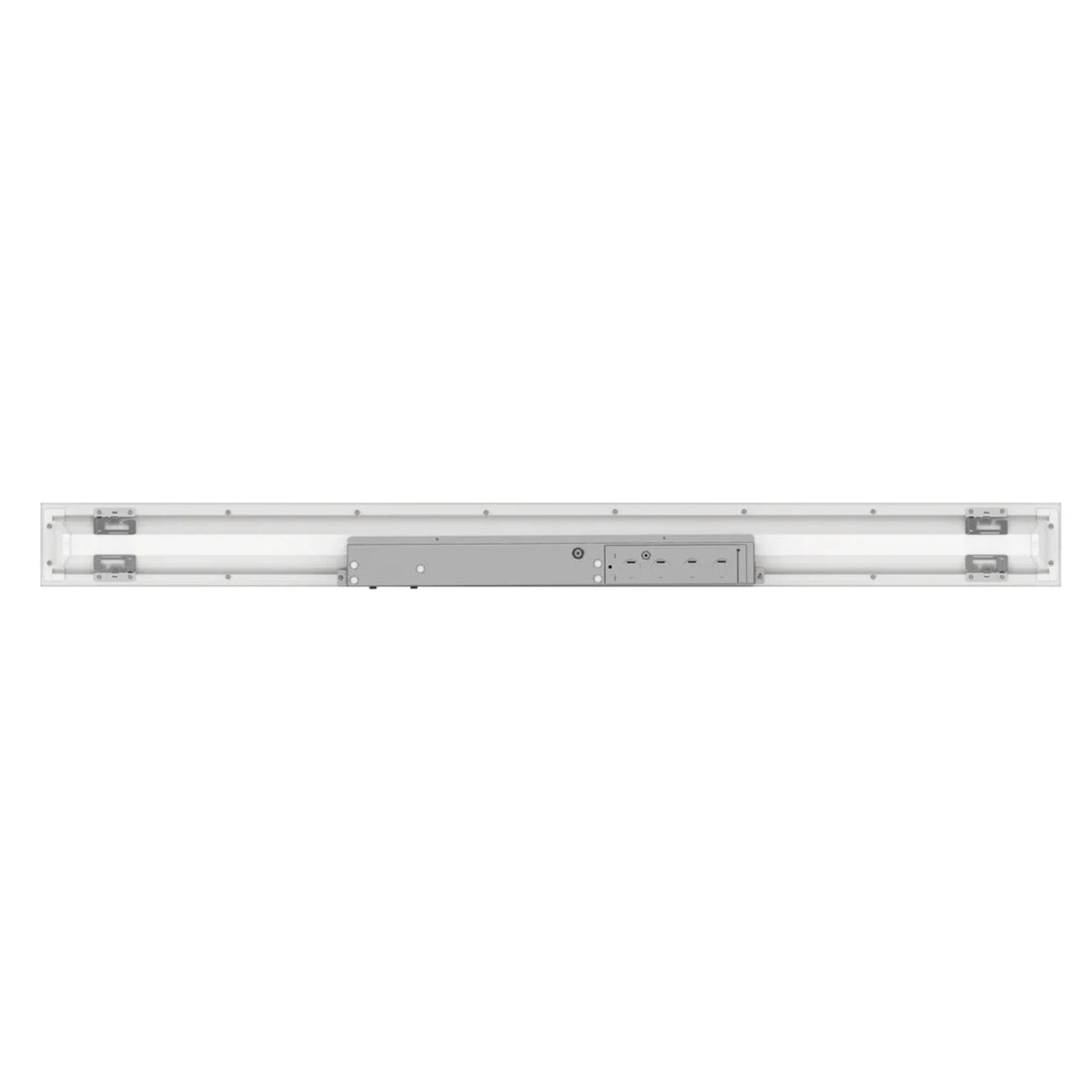

4 X 4 Recessed Backlit Panel CCT & Wattage Selectable (6 Pack)
4 X 4 Recessed Backlit Panel CCT & Wattage Selectable (6 Pack)
LUXRITE
SKU:
Specifications:
|
Size: 4X4 |
Product Beam Angle: 110° |
|
Wattage: 18W/28W/40W (Selectable) |
Product CCT: 3000K/3500K/4000K/5000K (Selectable) |
|
Operating Temperature: -4°C - +104°C |
Total Lumens (Min): 2200/3300/4400 lm |
|
Input Voltage Range: 120-277V |
Product Efficacy (Min): 110 lm/W |
|
Input Frequency: 50/60 Hz |
Input Current: 185 mA |
|
Power Factor: 0.9 |
Product CRI: 80 |
|
Dimming: 0-10 V |
Dimensions: 47.80""x3.93"x1.38" |
|
Lifetime: 50,000m hrs |
Certifications: Damp Location Rated, cULs Listed |
Description
Overview
The 4" x 4FT LED Backlit Panel Light combines a slim architectural profile with field-selectable performance. Choose between 18W, 28W, and 40W to produce up to 4,400 lumens, and select from 3000K, 3500K, 4000K, or 5000K color temperatures.
With 0–10V dimming and universal 120–277V operation, this fixture provides flexibility for commercial lighting projects while reducing the number of different fixture configurations that need to be stocked. Its 4-inch-wide backlit design provides a clean linear appearance for modern commercial ceilings.
Features
• 18W / 28W / 40W selectable
• Up to 4,400 lumens
• 110 lm/W efficacy
• 3000K / 3500K / 4000K / 5000K selectable
• 0–10V dimming
• 120–277V operation
• Slim 4" linear design
• 110° beam angle
• CRI 80
• 50,000-hour rated life
• UL Listed
• Optional flange kit
• 5-year warranty
