4 X 6 Recessed Backlit Panel CCT & Wattage Selectable (6 Pack)
4 X 6 Recessed Backlit Panel CCT & Wattage Selectable (6 Pack)
LUXRITE
SKU:
Specifications:
|
Size: 4X6 |
Product Beam Angle: 110° |
|
Wattage: 37W/48W/60W (Selectable) |
Product CCT: 3000K/3500K/4000K/5000K (Selectable) |
|
Operating Temperature: -4°C - +104°C |
Total Lumens (Min): 4400/5500/6600 lm |
|
Input Voltage Range: 120-277V |
Product Efficacy (Min): 110 lm/W |
|
Input Frequency: 50/60 Hz |
Input Current: 185 mA |
|
Power Factor: 0.9 |
Product CRI: 80 |
|
Dimming: 0-10 V |
Dimensions: 75.75"x3.93"x1.97" |
|
Lifetime: 50,000m hrs |
Certifications: Damp Location Rated, cULs Listed |
Description
Overview

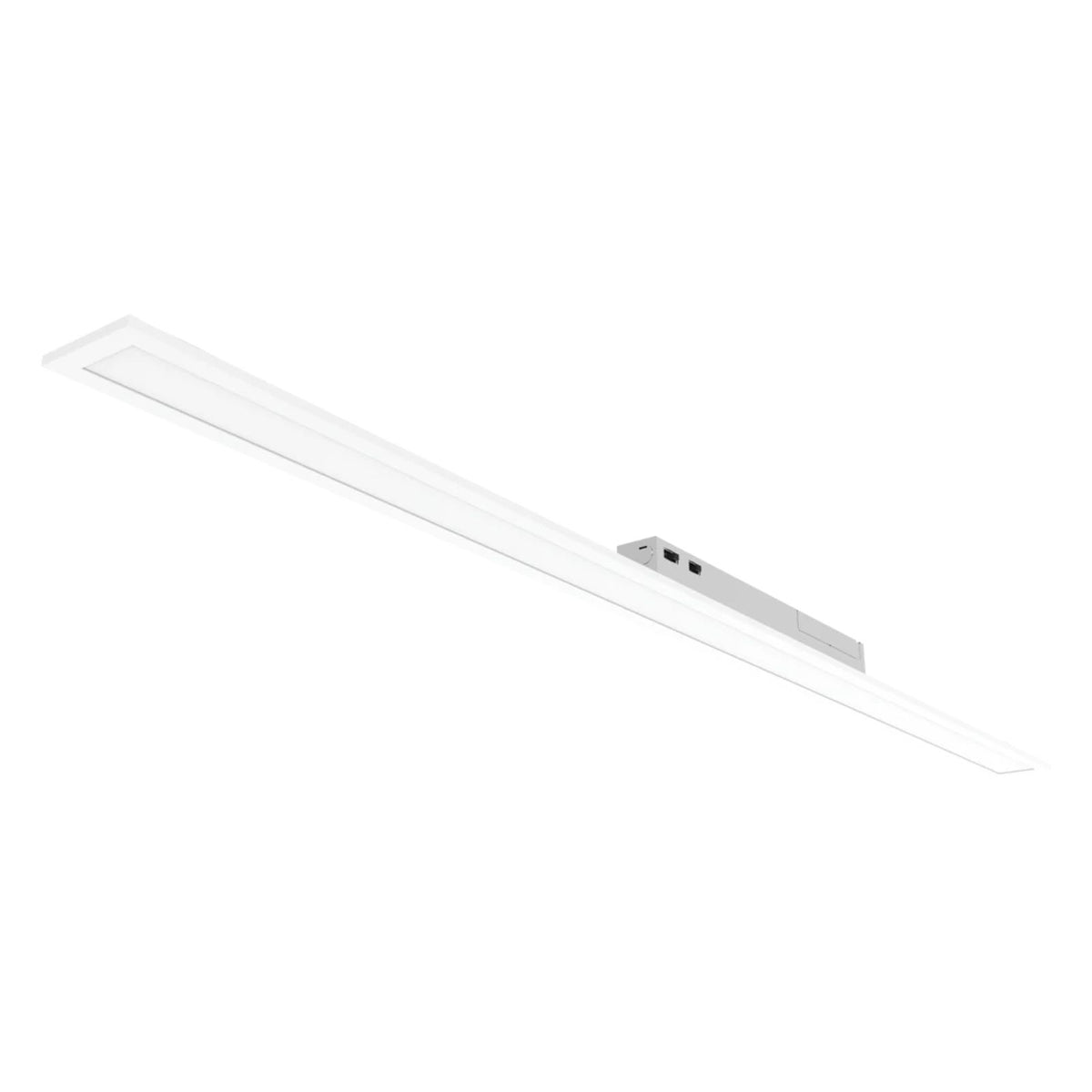

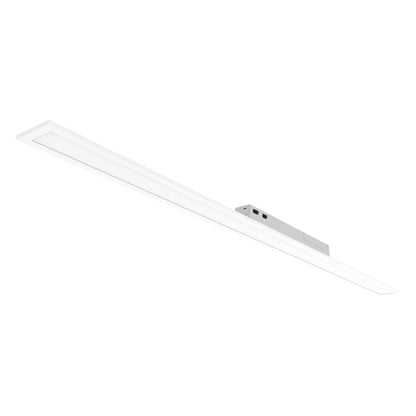

The 4" x 6FT LED Backlit Panel Light provides high-output linear illumination while maintaining a narrow 4-inch profile. Its selectable 37W, 48W, and 60W settings deliver up to 6,600 lumens, allowing contractors to adjust light output to suit the application.
Four selectable color temperatures—3000K, 3500K, 4000K, and 5000K—provide additional flexibility from warm to daylight-white illumination. The fixture operates on 120–277V, supports 0–10V dimming, and offers a 110° beam angle for broad, even illumination.
Features
• 37W / 48W / 60W selectable wattage
• Up to 6,600 lumens
• 110 lm/W efficacy
• 3000K / 3500K / 4000K / 5000K selectable
• 0–10V dimming
• 120–277V operation
• Slim 4" linear design
• 110° beam angle
• CRI 80
• 50,000-hour rated life
• UL Listed
• Optional flange kit
• 5-year warranty
