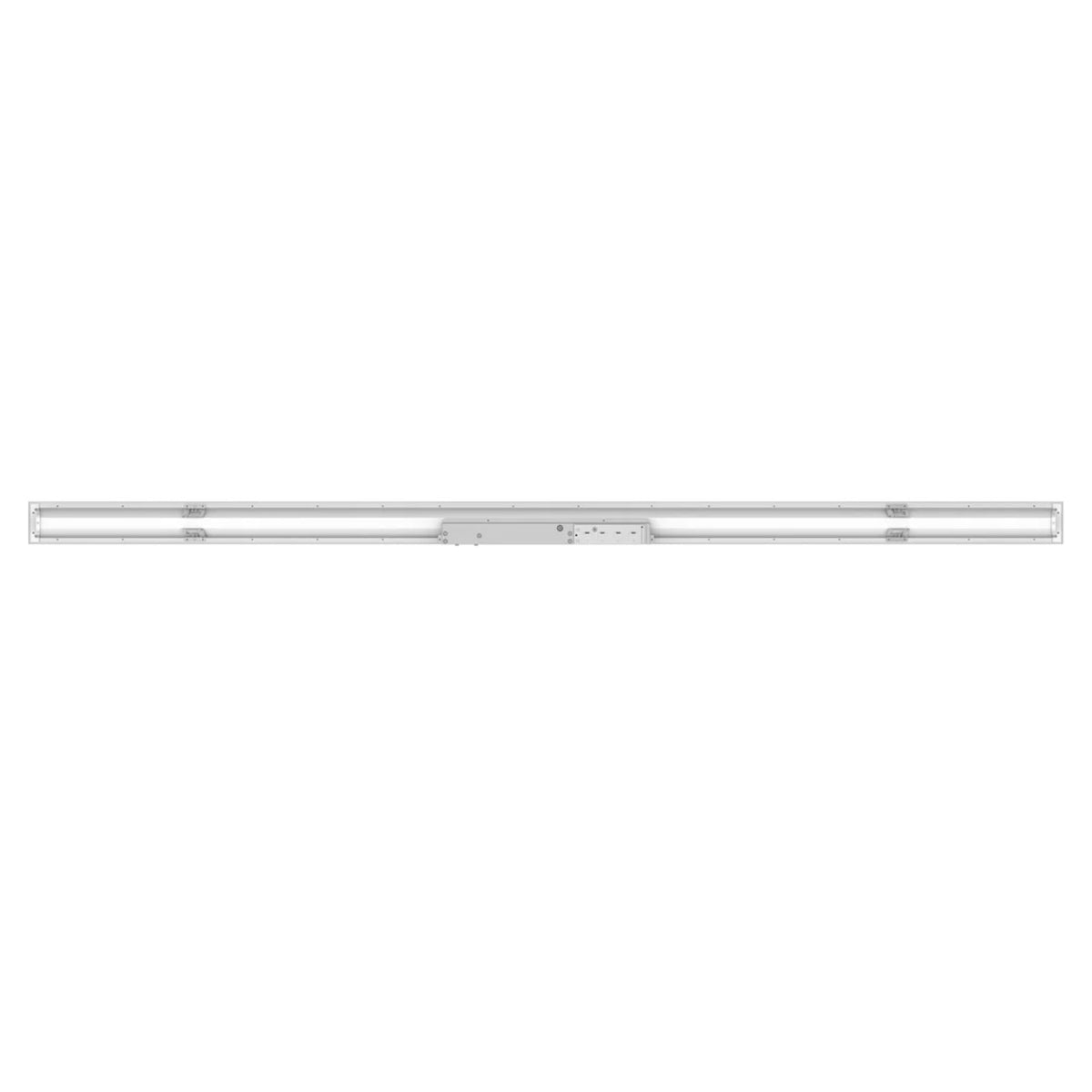

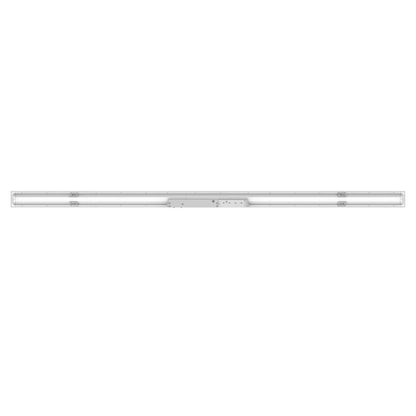

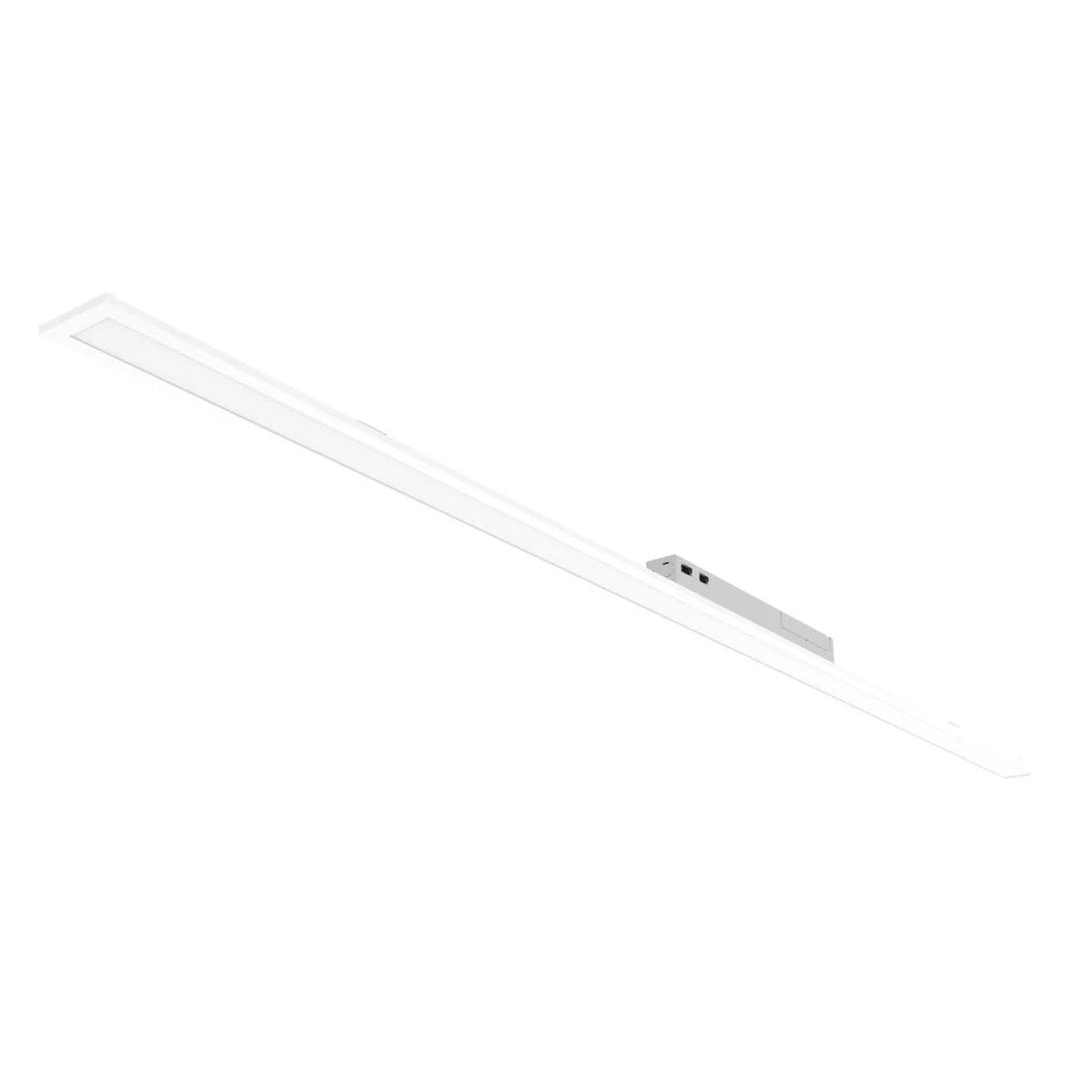

4 X 8 Recessed Backlit Panel CCT & Wattage Selectable (6 Pack)
4 X 8 Recessed Backlit Panel CCT & Wattage Selectable (6 Pack)
LUXRITE
SKU:
Specifications:
|
Size: 4X8 |
Product Beam Angle: 110° |
|
Wattage: 37W/57W/80W (Selectable) |
Product CCT: 3000K/3500K/4000K/5000K (Selectable) |
|
Operating Temperature: -4°C - +104°C |
Total Lumens (Min): 4400/6600/8800 lm |
|
Input Voltage Range: 120-277V |
Product Efficacy (Min): 110 lm/W |
|
Input Frequency: 50/60 Hz |
Input Current: 185 mA |
|
Power Factor: 0.9 |
Product CRI: 80 |
|
Dimming: 0-10 V |
Dimensions: 95.79"x3.93"x1.97" |
|
Lifetime: 50,000m hrs |
Certifications: Damp Location Rated, cULs Listed |
Description
Overview
The 4" x 8FT LED Backlit Panel Light is the largest and highest-output model in this linear panel series. Selectable 37W, 57W, and 80W settings deliver up to 8,800 lumens, providing substantial illumination from a narrow 4-inch-wide fixture.
The integrated CCT selector provides 3000K, 3500K, 4000K, and 5000K options, while 0–10V dimming gives additional control over light levels. Designed for 120–277V commercial electrical systems, the LR24223 combines high output, field adjustability, and an elongated architectural appearance.
Features
• 37W / 57W / 80W selectable wattage
• Up to 8,800 lumens
• 110 lm/W efficacy
• 3000K / 3500K / 4000K / 5000K selectable
• 0–10V dimming
• 120–277V operation
• Slim 4" linear design
• 110° beam angle
• CRI 80
• 50,000-hour rated life
• UL Listed
• Optional flange kit
• 5-year warranty
