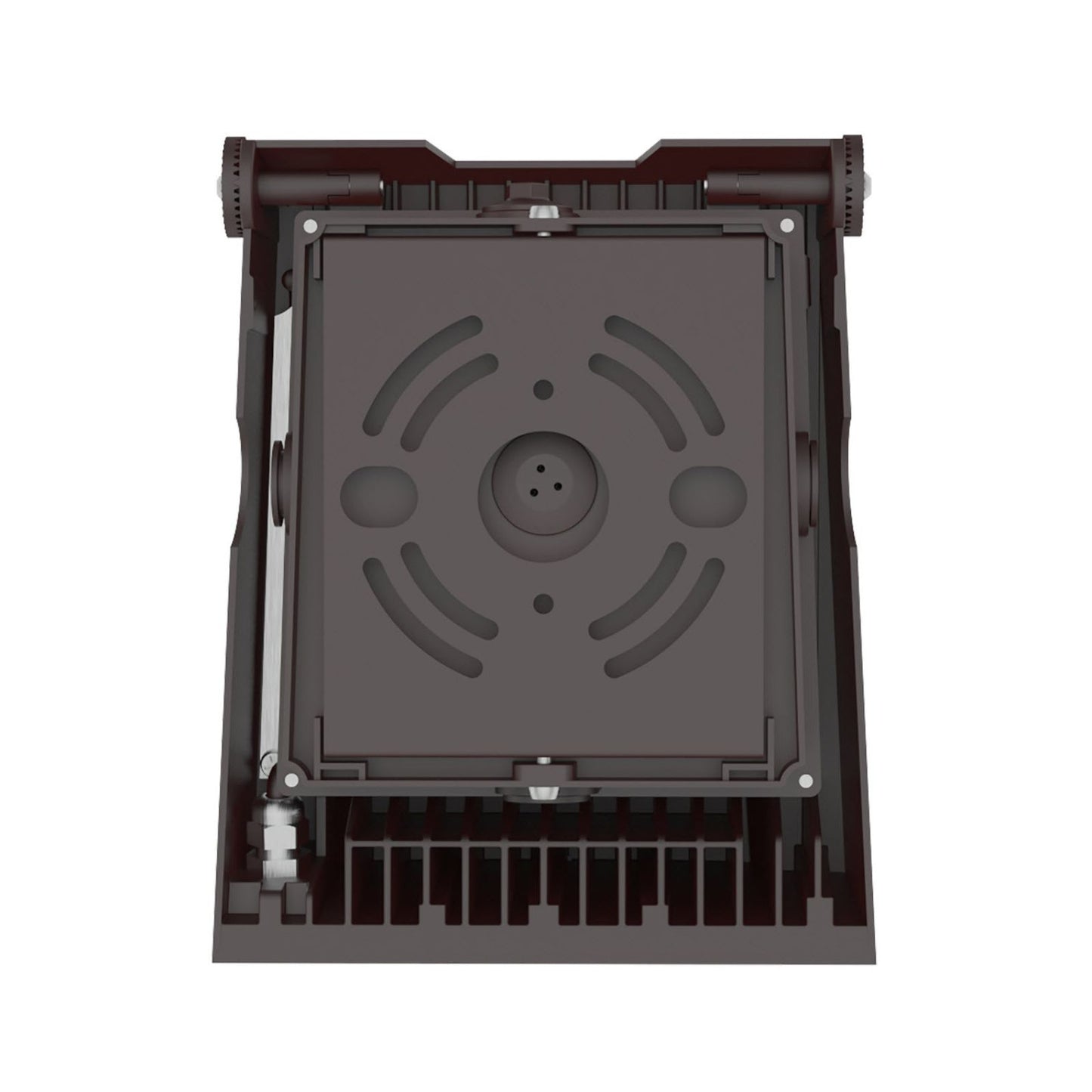

100W Multi Watt Multi CCT LED Wall Pack
100W Multi Watt Multi CCT LED Wall Pack
LEDone
SKU:
Specifications:
|
Dimensions: 295 mm x 275 mm x 112.4 mm |
Accessories: Photocell Included |
|
Wattage: 50/60/80/100W (Selectable) |
Bug Rating: B3-U1-G1 |
|
Finish: Polyster Powder Coated Finish |
IP Rating: IP65 |
|
Input Voltage Range: 120 - 347V |
Average life: 50,000 hrs |
|
Input Frequency: 50/60 Hz |
Operating Temperature: -40°C to +40°C (-40°F to 104°F) |
|
Power Factor: 0.9 |
Diffuser Transmission: High |
|
THDA: 20% |
Rating: Wet Location |
|
Total Lumens (Min): 6,500 lm/7,800 lm/10,400 lm/13,000 lm |
Product Efficacy (Min): 130 lm/W |
|
Dimming: 0 - 10V |
Product CCT: 3000/4000/5000K (Selectable) |
|
Product CRI: 70 |
LED Package: Philips Lumiled 3030 |
|
Lens Material: Tempered Glass |
Product Beam Angle: 100° |
|
Diffuser Material: Polycarbonate |
Housing Material: Heavy Diecast Aluminum |
Description
Overview
This LED Adjustable Wall Pack Light Family Series, available in adjustable wattage options (20W, 30W, 40W, 50W, 60W, 80W, and 100W), offers versatile lighting options for various commercial and industrial applications. These wall pack lights are designed to provide bright, reliable illumination with minimal energy consumption and a long lifespan of up to 50,000 hours.
With selectable wattage options and 0-10V dimming capability, these wall pack lights can be easily adjusted to suit different lighting environments. The high efficacy ensures excellent brightness, making these lights ideal for large outdoor spaces. Constructed with durable materials, including corrosion and rust-proof die-cast aluminum housing with a polyester powder-coated finish, these lights are built to withstand harsh conditions.
The IP65 rating makes these wall pack lights suitable for both indoor and outdoor use, even in challenging environments. The versatile wall mount installation ensures easy setup and flexibility in various settings such as residential complexes, parking decks, shopping malls, sporting complexes, logistic centers, auto dealerships, and municipal lots. Additionally, the included photocell enhances energy efficiency by automatically adjusting the light based on ambient light conditions.
Features
• Multi-Wattage Selectable: Adjustable wattages for various applications.
• High Efficacy: Provides up to 130 lumens per watt, ensuring maximum brightness with minimal energy consumption.
• Long Lifespan: Up to 50,000 hours of reliable performance.
• Wide Input Voltage Range: Compatible with 120-347V electrical systems.
• 0-10V Dimming: Standard dimming capability for adjustable light levels.
• High CRI: Ensures accurate color rendering with a CRI of 70.
• Quality Construction: Made with corrosion and rust-proof die-cast aluminum housing with a polyester powder-coated finish.
• IP65 Rated: Suitable for indoor and outdoor use in challenging environments.
• Versatile Mounting Options: Includes wall mount installation.
• Photocell Included: Enhances energy efficiency by automatically adjusting the light based on ambient light conditions.
• Suitable Applications: Ideal for residential complexes, parking decks, shopping malls, sporting complexes, logistic centers, auto dealerships, and municipal lots.
