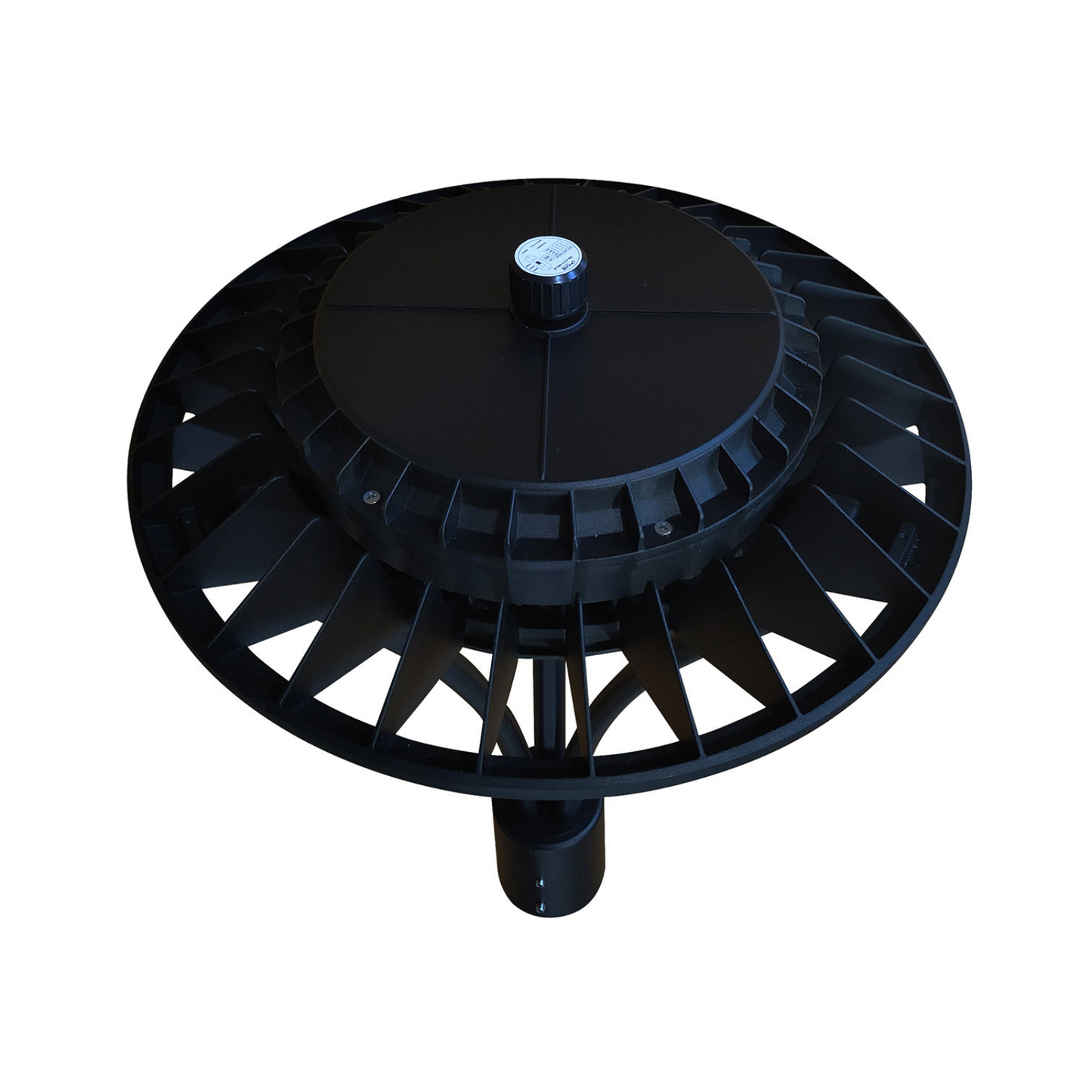

150W Multi Watt Multi CCT LED Post Top Light
150W Multi Watt Multi CCT LED Post Top Light
LEDone
SKU:
Specifications:
|
Dimensions: 19.5” x 19.55” x 8.75” |
Lens Type: Type 5 Lens |
|
Wattage: 60W/80W/100W/150W (Selectable) |
IP Rating: IP65 |
|
Housing Material: Die Cast Aluminum |
Bug Rating: B4-U1-G1 |
|
Input Voltage Range: 120 - 277V AC |
Average life: 50000 hrs |
|
Input Frequency: 50/60 Hz |
Operating Temperature: -20°C to +50°C (-4°F to 122°F) |
|
Power Factor: >0.90 |
Diffuser Transmission: High |
|
THDA: ≤20% |
Rating: Wet Location |
|
Total Lumens (Min): 8,251.8 lm/11,002.4 lm/13,753 lm/20,897 lm |
Product Efficacy (Min): 137.53 lm/W |
|
Driver Type (CC/CV): CC |
Product CCT: 3000K/4000K/5000K (Selectable) |
|
Product CRI: 71 |
LED Package: Philips Lumileds 3030 LED chips |
|
Lens Material: Polycarbonate |
Product Beam Angle: 120° |
|
Diffuser Material: Polycarbonate |
Mounting Option: Pole mounting – Suitable for 3” poles |
Description
Overview
This LED Multi Wattage Multi CCT Post Top Light Family Series, available in selectable wattage options (60W, 80W, 100W, 150W) and color temperatures (3000K, 4000K, 5000K), offers versatile lighting solutions for various commercial and industrial applications. These post top lights are designed to provide bright, reliable illumination with minimal energy consumption and a long lifespan of up to 50,000 hours.
With selectable wattage and CCT options and 0-10V dimming capability, these post top lights can be easily adjusted to suit different lighting environments. The high efficacy ensures excellent brightness, making these lights ideal for large outdoor spaces. Constructed with durable materials, including corrosion and rust-proof die-cast aluminum housing, these lights are built to withstand harsh conditions.
The IP65 rating makes these post top lights suitable for both indoor and outdoor use, even in challenging environments. The versatile mounting options, including suitability for 3” poles, ensure easy installation and flexibility in various settings such as area lighting, parking decks, auto dealerships, high masts, housing complexes, shopping malls, sporting complexes, parks, recreational areas, and municipal lots. Additionally, the lights are compatible with various sensors such as microwave, PIR, Bluetooth sensors, and photocells, enhancing energy efficiency and automation.
Features
• Multi-Wattage Selectable: Adjustable wattages (60W, 80W, 100W, 150W) for various applications.
• High Efficacy: Provides up to 137.53 lumens per watt, ensuring maximum brightness with minimal energy consumption.
• Long Lifespan: Up to 50,000 hours of reliable performance.
• Wide Input Voltage Range: Compatible with 120-277V electrical systems.
• 0-10V Dimming: Standard dimming capability for adjustable light levels.
• High CRI: Ensures accurate color rendering with a CRI of 71.
• Quality Construction: Made with corrosion and rust-proof die-cast aluminum housing.
• IP65 Rated: Suitable for indoor and outdoor use in challenging environments.
• Versatile Mounting Options: Suitable for 3” poles, providing easy installation.
• No Lead or Mercury: Environmentally friendly with no harmful materials.
• Rust & Corrosion Proof: Durable design suitable for various weather conditions.
• Optional Accessories: Compatible with various sensors such as microwave, PIR, Bluetooth sensors, and photocells.
