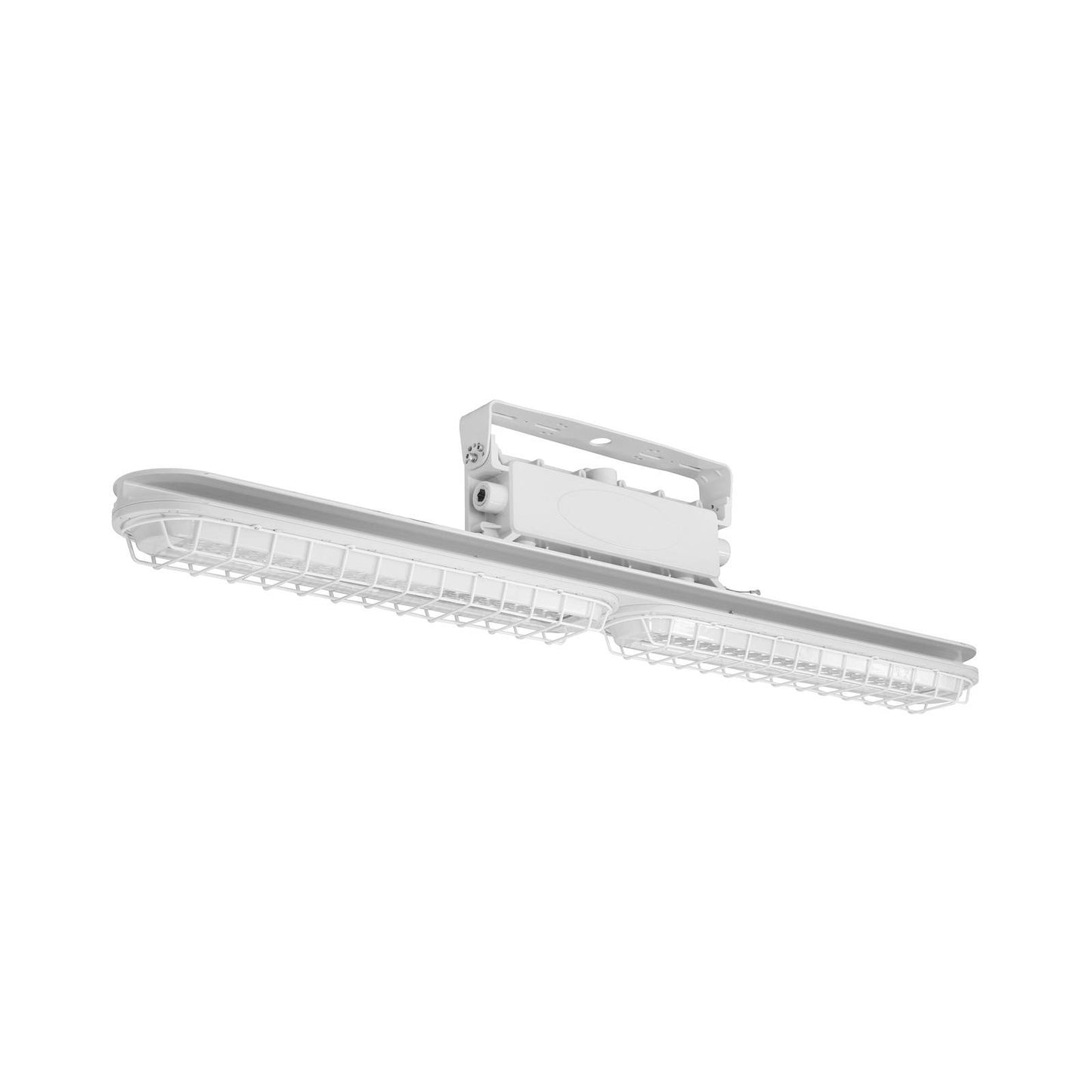

80W Linear Hazard Light
80W Linear Hazard Light
PLT
SKU:
Specifications:
|

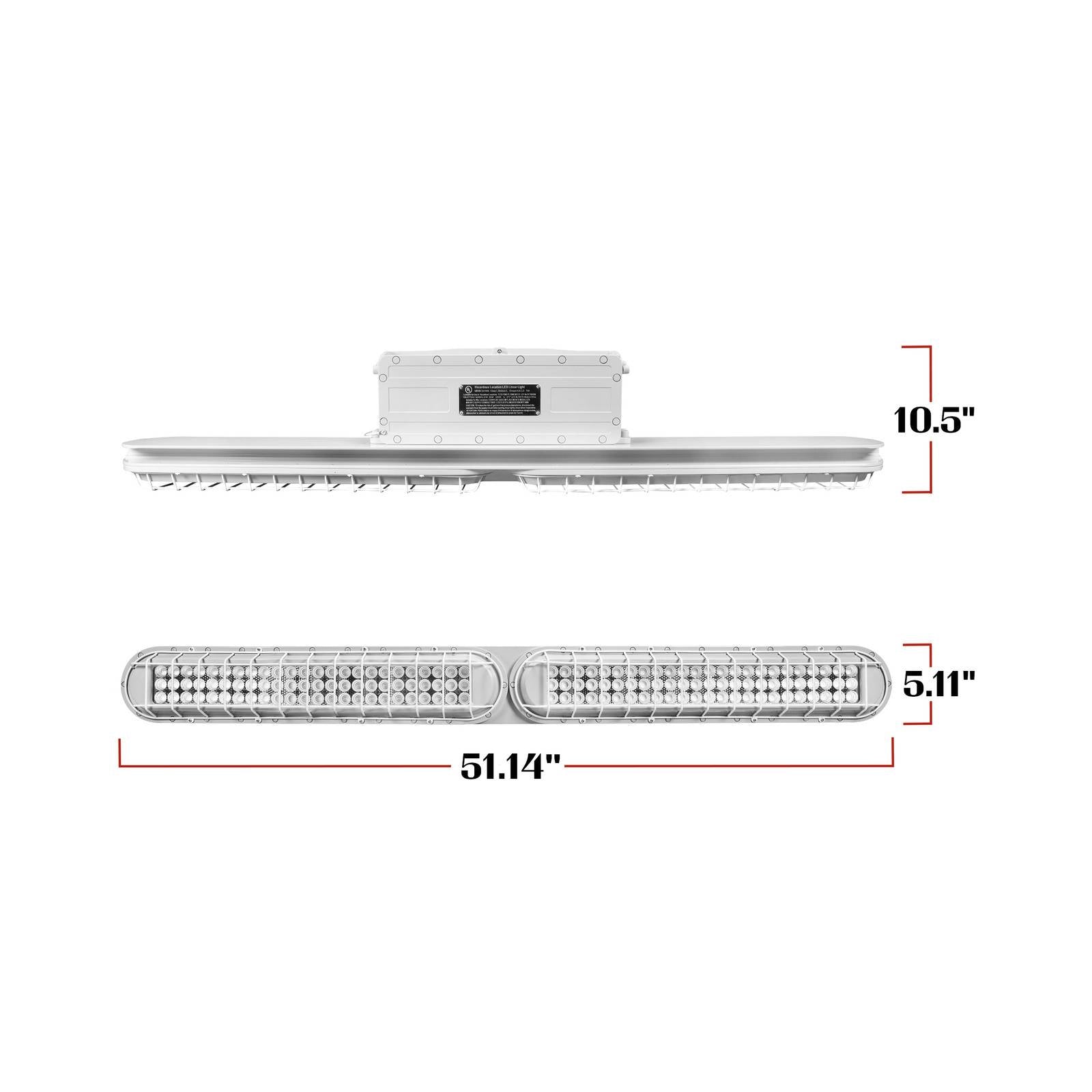

Size: 51.14 L x 5.11 W x 10.5" h |
Product CCT: 5000K |
|
Wattage: 80W |
Lens: Clear Glass |
|
Fixture Color: Grey |
Dimming: No |
|
Power Factor: ≥0.9 |
Average life: 50,000 hrs |
|
Ratings and Certifications: Class 1 Div 2, DLC Standard 5.1, UL, Wet Location |
Operating Temperature: -40°F to 149°F |
|
Input Voltage: 120-277V |
Beam Adjustment: 30°, 60° or 90° |
|
Driver Type: Sosen |
Mounting: Adjustable U-Bracket |
|
THD: ≤20% |
Total Lumens: 9,910 lm |
|
Product CRI: 80+ |
Product Efficacy (Min): 123 lm/W |
|
Housing: Aluminum |
Rating: IP66 |
Description
Overview
This 80W Linear LED Explosion-Proof Fixture provides dependable illumination for hazardous environments where ignitable gases or combustible dust may be present. Built with a rugged aluminum housing, Class I Division 2 certification, and IP66 protection, it offers long-lasting performance for factories, refineries, warehouses, and industrial facilities.
Features
• Class I Division 2 certified for hazardous locations
• Replaces 150W metal halide fixtures
• High efficiency up to 123 lm/W
• IP66 rated for wet and dusty environments
• Adjustable U-bracket with 30°, 60°, and 90° aiming positions
• Protective wire guard included
• Durable aluminum housing with clear glass lens
• Seoul Semiconductor LEDs with Sosen driver
• UL Listed and DLC 5.1 Standard qualified
