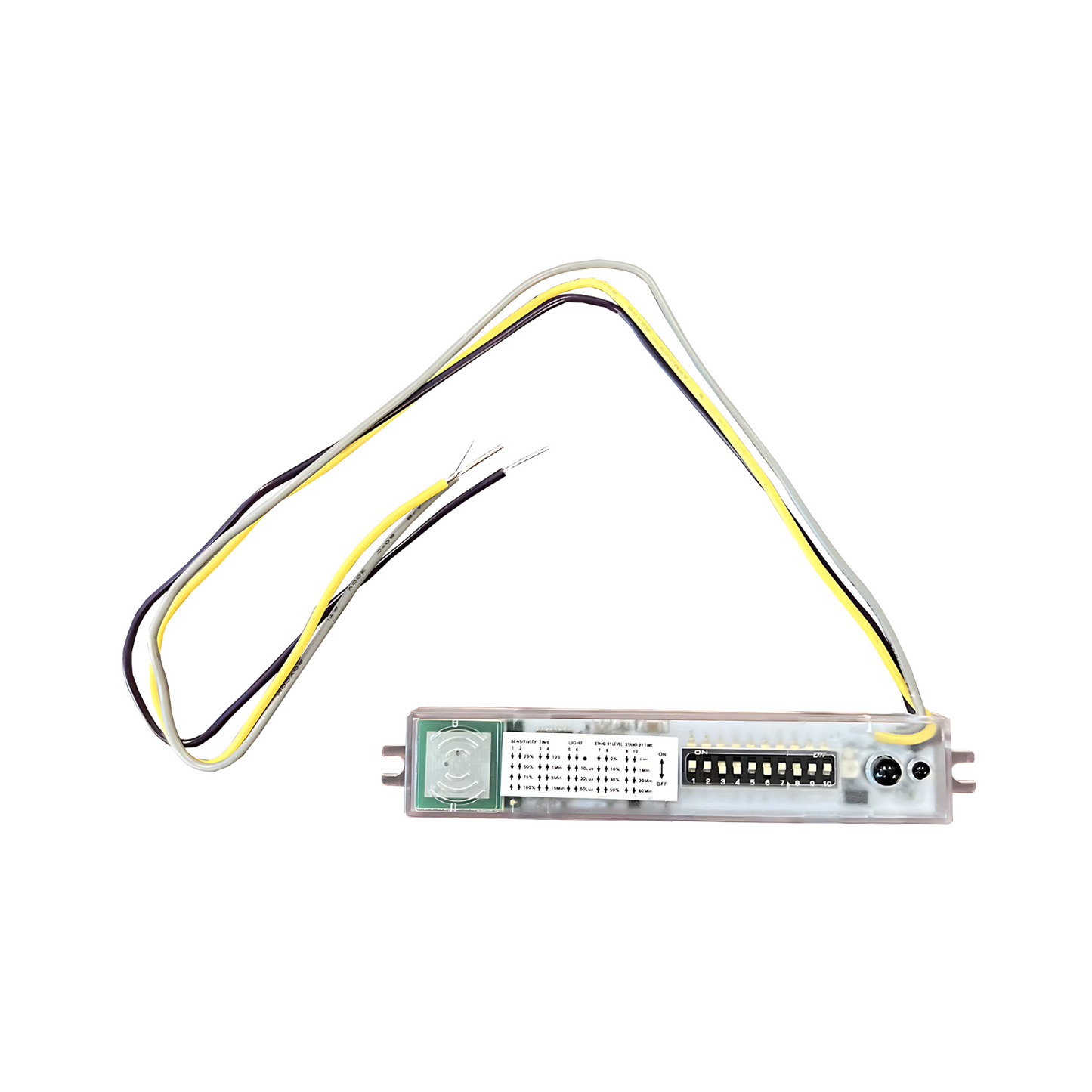

Bi-level Daylight Harvesting Microwave Sensor
Bi-level Daylight Harvesting Microwave Sensor
LEDone
SKU:
Specifications:
|
Power Supply: 12V-24V DC, >50mA |
Temperature Range: -40°C to 70°C (-40°F to 158°F) |
|
HF System: 5.8GHz +/- 75MHz |
Hold Time: 10 seconds to 15 minutes (adjustable) |
|
Dim Control Output: 0-10V, maximum 25mA sinking current |
Light Control Setting: 10Lux / 30Lux / 50Lux (adjustable) |
|
Detection Radius/Angle: Max. 17ft (5.2m) / 360° |
Sensitivity Levels: 20%, 50%, 75%, 100% (adjustable) |
|
Mounting Height: Max. 13ft (4m) |
Standby Light Level: 0%, 10%, 30%, 50% (adjustable) |
|
Remote Range: 50ft (15m) indoor, no backlight |
Standby Time Setting: 1 minute, 30 minutes, 60 minutes, infinite |
|
Humidity: Max. 95% RH |
Daylight Sensor: 30 Lux (Factory Default) |
Description
Overview
This bi-level daylight harvesting microwave sensor is designed to optimize energy efficiency and enhance lighting performance. With a detection radius of 17ft and a 360° coverage angle, this sensor is ideal for commercial and industrial applications. It operates reliably in extreme temperatures and high humidity environments, making it a versatile choice for a wide range of installations. Additionally, the sensor can be easily controlled via a remote, ensuring convenient adjustments and superior functionality.
Features
• Bi-level daylight harvesting with microwave sensor.
• Operates on 12V-24V DC power with minimal current requirement.
• Detects up to a 17ft radius with a 360° angle for wide coverage.
• Designed for mounting at heights up to 13ft.
• Can be controlled remotely from a distance of up to 50ft indoors.
• Works effectively in environments with humidity up to 95%.
• Functions in extreme temperatures ranging from -40°C to 70°C (-40°F to 158°F).
• Provides dim control output of 0-10V with a maximum sinking current of 25mA.
• Compatible with remote control for easy settings adjustments.
