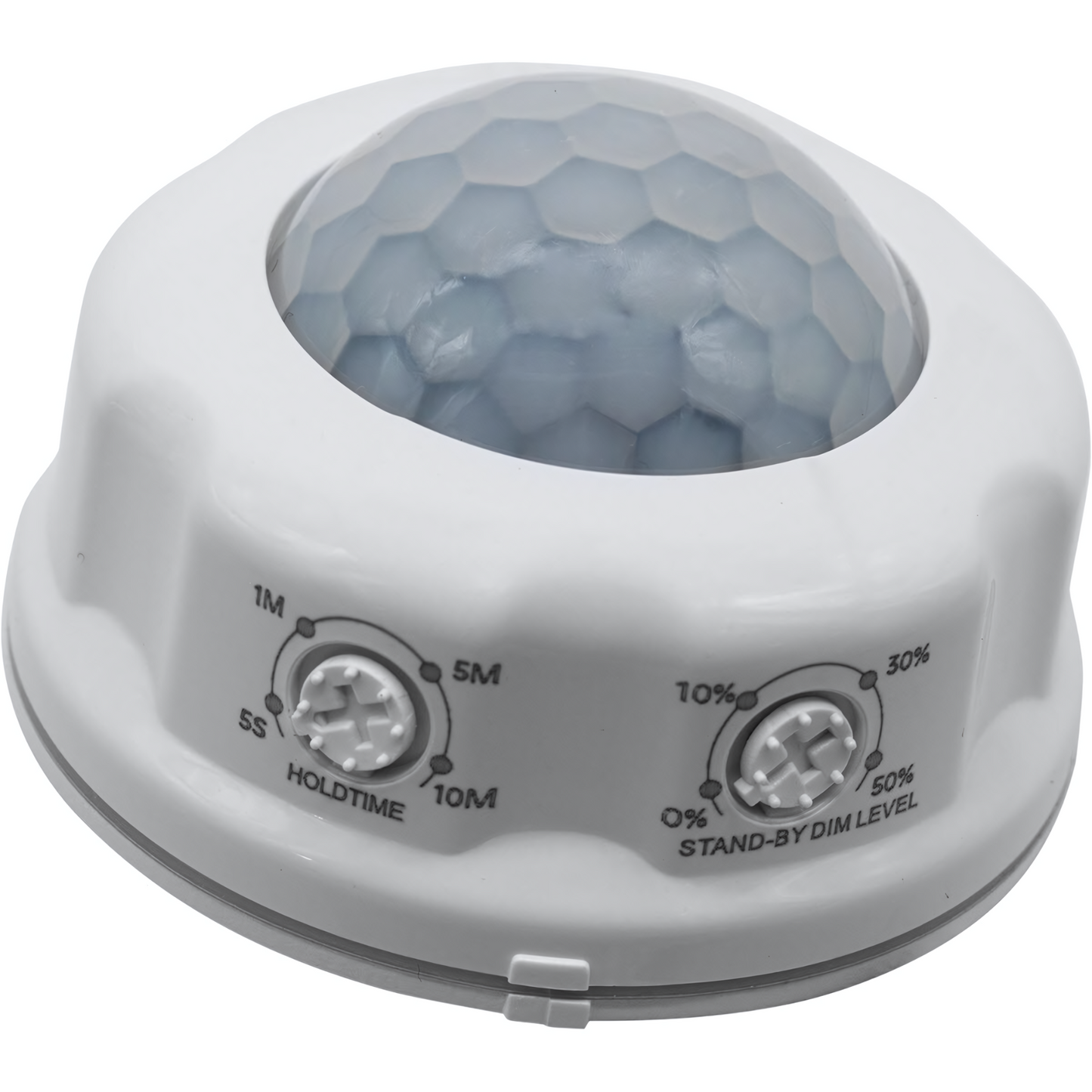

Bluetooth Remote Combo Motion Sensors

Bluetooth Remote Combo Motion Sensors

LEDone

SKU:

Specifications:

Voltage Range: 10-15VDC

Detection Area (Remote Control): 25%/50%/75%/100%

Current (Remote control Versions): <15mA

Detection Area (Rotating switch):  Default Setting 100%

Current (APP Control Versions): <20mA

Detection Area (APP Control): 25%/50%/75%/100%

PIR Sensitivity: 3200V/W

Installation Height: 12m/39ft Max.

Microwave Power: <0.3mW

Standby Dimming Level: 0%/10%/30%/50%

Signal: DIM 0-10V

Working Temperature: -20°C ~ +50°C

IP Rating: IP65

Detection Distance (Radius): 3-7m / 9.84-22.96ft

View full details

Description

Overview

This sensor is a versatile and highly adaptable lighting control solution, featuring a 12VDC input with 0-10V dimming capability, daylight harvesting, and a photocell function. It offers reliable performance across a wide range of environmental conditions, making it ideal for both indoor and outdoor applications. The unit is available in both remote and app-controlled versions, ensuring maximum flexibility for installation and use. With a high IP65 rating, this sensor is built to withstand harsh environments, offering robust protection against dust and water ingress.

Features

• Rotator & remote control, app control for BLE version.
• 12VDC input, 0-10V dimming, with daylight harvesting and photocell function.
• ONE for ALL installations partnering with different receptacles & brackets.
• Wide voltage range of 10-15VDC.
• High PIR sensitivity at 3200V/W.
• Infrared wavelength range of 5-14um.
• Detection area adjustable via remote control, rotating switch, or app control.
• Supports daylight threshold settings from 2Lux to 400Lux or disable.
• IP65 rated for robust outdoor performance.
• Customizable hold time from 5s to 10min.
• Standby dimming levels adjustable to 0%, 10%, 30%, or 50%.
• Installation height up to 12m/39ft.
• Operates efficiently in temperatures from -20°C to +60°C.
• Advanced dusk/dawn function with automatic light adjustments based on natural light levels.
• Default program settings available for quick setup.
