Grid Smart Pro 24" 9/16" 5CCT Selectable

Grid Smart Pro 24" 9/16" 5CCT Selectable

LUXRITE

Specifications:

Size: 24"

Product Beam Angle: 120°

Wattage: 15W

Product CCT: 3000K/3500K/4000K/5000K/6500K (Selectable)

Operating Temperature: -4°C - +113°C

Total Lumens (Min): 1950 lm

Input Voltage Range: 100-277 VAC

Product Efficacy (Min): 130 lm/W

Input Frequency: 50/60 Hz

Input Current: 0.17A

Power Factor: 0.95

Product CRI: 80

Dimming: 0-10 V

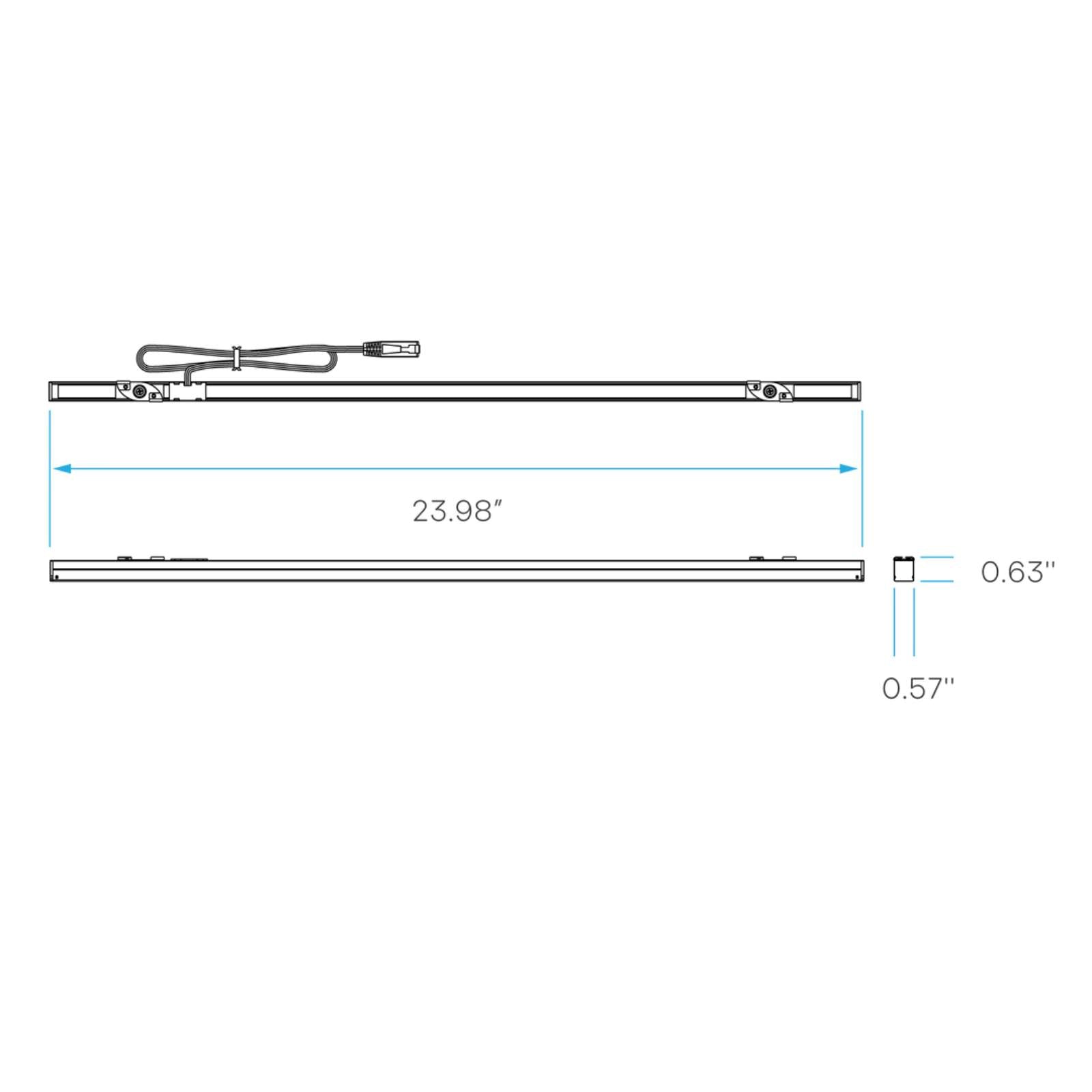

Dimensions: 23.98", 0.63", 0.57"

Lifetime: 50,000 hrs

Certifications:  cETLus

T-Bar Compatibility: 9/16"

Thickness: 0.48"



View full details

Description

Overview

This Grid Smart Pro LED Bar is a modular 2FT lighting solution designed for 9/16” T-bar ceilings. Its clip-on installation eliminates the need for grid replacement while providing flexible linear lighting layouts for offices, retail spaces, and commercial interiors.

Features

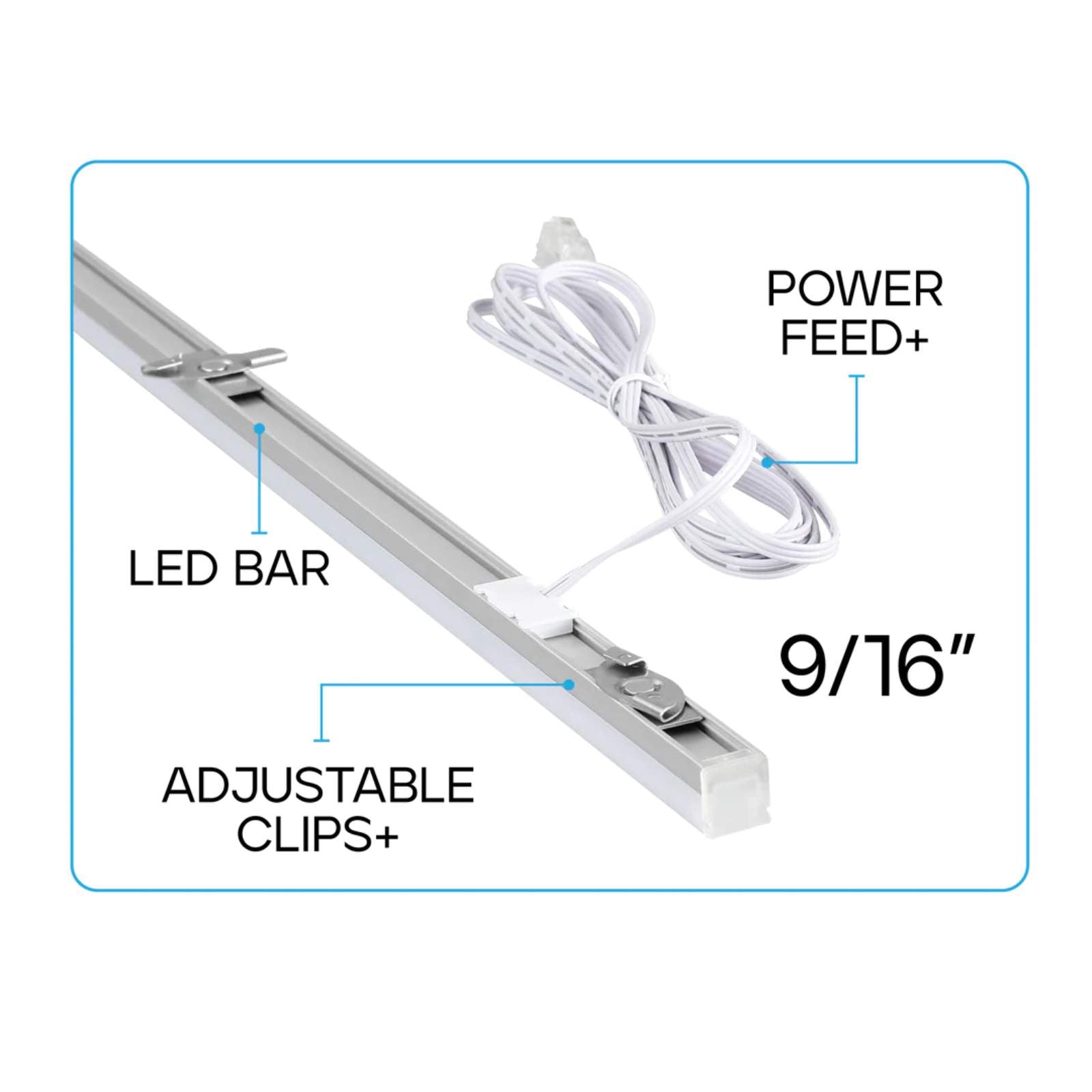

• Clips directly onto existing T-bar grid
• 5 CCT selectable
• Ultra-slim profile design
• Endless layout configuration options
• No grid replacement required
• 0–10V dimmable
• Commercial-grade performance
